Photoelectric Sensor Opposed Mode Sensor (Emitter/Receiver) Q45BB6RQ5
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488386603
MPN: 3038660
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Opposed Mode Sensor (Emitter/Receiver) Q45BB6RQ5 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Housing material | Plastic |
| Ambient temperature | -40 °C |
| Type of switching output | PNP/NPN |
| Type of switch function | Normally open contact (NO) |
| Degree of protection (IP) | IP67 |
| Rated switching distance | 60000 mm |
Packing details
| Packing level 1 | 0662488386603, 0662488386603 |
Other Technical data
| Suitable for safety functions | No |
| With time function | No |
| Switching frequency | 250 Hz |
| Type of electric connection | Connector M12 |
| Construction type housing | Cuboid |
| Min. reflector distance | 0 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Response time | 2 ms |
| Pre failure notice | No |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |

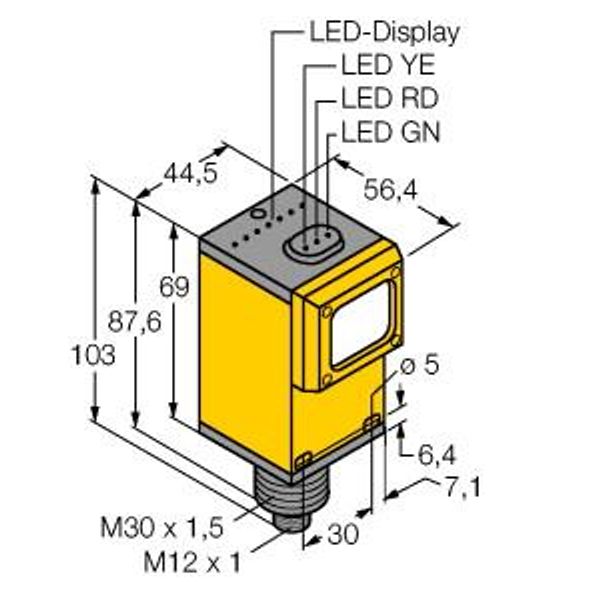

| Width sensor | 44.5 mm |
| Diameter sensor | 30 mm |
| Height of sensor | 102.6 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 56.4 mm |
| Max. switching distance | 60000 mm |
| With reflector | No |
| With other analogue output | No |
Downloads
Description
Opto-elektronische sensor, zender-ontvanger systeem (ontvanger), Bedrijfsspanning 10…30 VDC, max. reikwijdte 60000 mm, connector, M12 x 1, beschermingsgraad IP67, gevoeligheid instelbaar met potentiometer, bedrijfsspanning: 10…30 VDC, bipolaire schakeluitgang, licht- of donkerschakelend regelbaar met keuzeschakelaar
