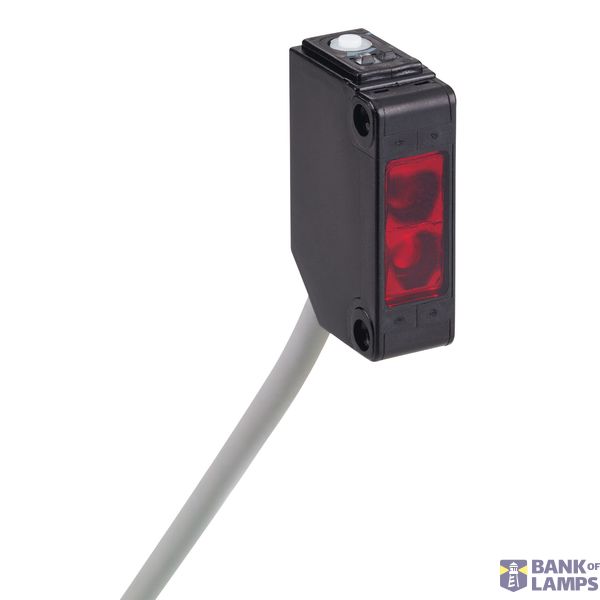

PHOTOELECTRIC SENSOR MINIATURE
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PHOTOELECTRIC SENSOR MINIATURE |
| Brand | Schneider Electric |
| Country of origin* | TH |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC002651 |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Type of electric connection | Cable radial |
| Type of switching output | Other |
| Type of switch function | Other |
| With blanking function | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
Packing details
| Packing level 1 | 3389119079921 |
Other Technical data
| Voltage type | AC/DC |
| Indication | Other |
| Max. output current | 35 mA |
| Housing material | Plastic |
| Ambient temperature | -25-55 °C |
| With time function | No |
| Switching frequency | 1000 Hz |
| Rated control supply voltage at DC | 12-24 V |
| Operation agent-safety class | Safety class 0 |
| Setting procedure | Other |
| Construction type housing | Cuboid |
| Laser protection class | Other |
| No-load current | 0 mA |
| Type of light | Laser diode, infrared light |
| Nominal operating distance | 5 mm |
| Material of cable sheath | Other |
| Material fibre optics core | Plastic |
| Degree of protection (IP) | IP67K |
| AWG-number | 0 |
| Width amplifier | 11 mm |
| Diameter sensor | 0 mm |
| Height amplifier | 33 mm |
| Length amplifier | 20 mm |
Description
PHOTOELECTRIC SENSOR MINIATURE
