Photoelectric Sensor Luminescence Sensor QL56M6XD30BQ
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2 047,72 €
EAN: 0662488813277
MPN: 3081327
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Luminescence Sensor QL56M6XD30BQ |
| Brand | Banner |
| Categories |
Color Sensors
|
| Country of origin | HU |
| Harmonized System Code | 8536 5019 00 |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| No-load current | 200 mA |
| Type of light | Other |
Packing details
| Packing level 1 | 0662488813277, 0662488813277 |
Other Technical data
| Housing material | Other |
| Ambient temperature | -10 °C |
| With time function | No |
| With blanking function | No |
| Construction type housing | Cuboid |
| With fibre optics connection | No |
| With exchange lens | No |
| Material of optical surface | Glass |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |

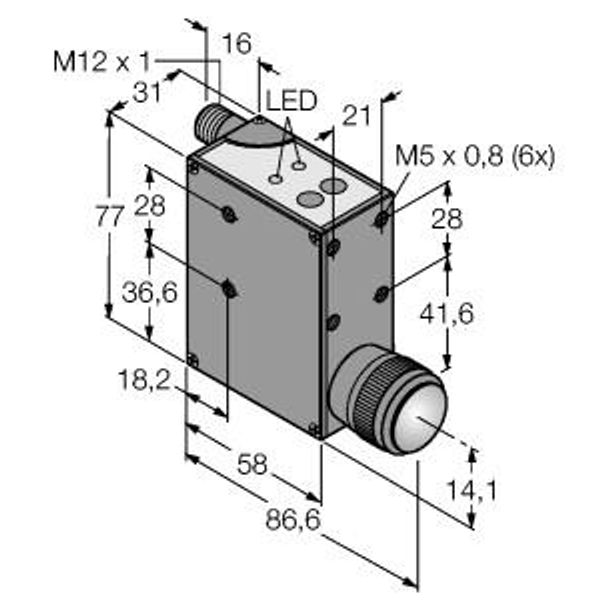

| Width sensor | 31 mm |
| Height of sensor | 58 mm |
| Length of sensor | 77 mm |
Downloads
Description
Foto-elektrische sensor, luminiscentiesensor, Bedrijfsspanning 15…30 VDC, max. reikwijdte 40 mm, beschermingsgraad IP67, connectoraansluiting M12x1 90° draaibaar, bedrijfsspanning 10…30 VDC, PNP of NPN schakeluitgang, 0…7 V analoge uitgang, nietvluchtig EEPROM-geheugen
