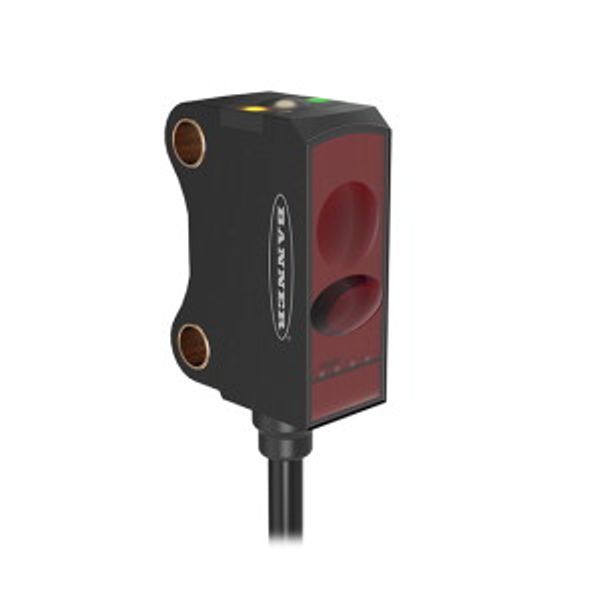

Photoelectric Sensor Diffuse Mode Sensor with Fixed-Field Background Suppression VS8APFF30Q3
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
270,84 €
EAN: 0662488024437
MPN: 3803476
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse Mode Sensor with Fixed-Field Background Suppression VS8APFF30Q3 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | DE |
| Harmonized System Code | 8536 5019 00 |
| Adjustment range | 2 mm |
| Response time | 0.5 ms |
| Max. switching distance | 30 mm |
| Rated switching distance | 30 mm |
Packing details
| Packing level 1 | 0662488024437, 0662488024437 |
Other Technical data
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -20 °C |
| Type of electric connection | Connector M8 |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Construction type housing | Cuboid |
| Type of light | Polarity free red light |
| Wavelength of the sensor | 650 nm |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyurethane (PUR) |
| Degree of protection (IP) | IP67 |

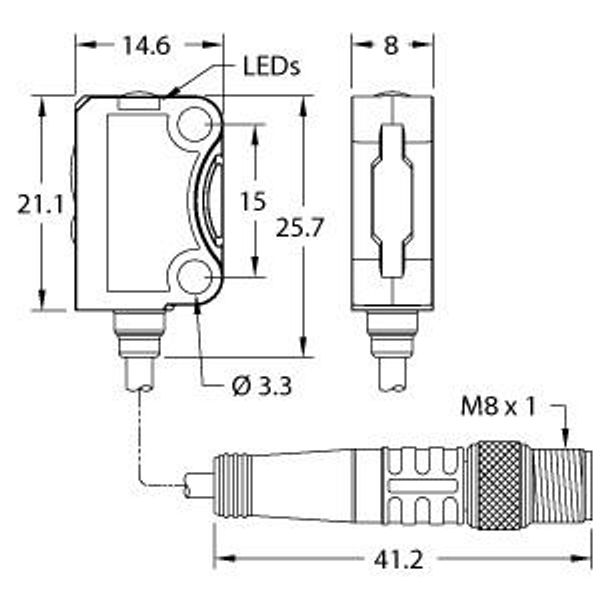

| Width sensor | 8 mm |
| Height of sensor | 25.7 mm |
| Length of sensor | 14.6 mm |
Downloads
Description
Foto-elektrische sensor, Diffuse sensor met vaste achtergrondonderdrukking, Bedrijfsspanning 10…30 VDC, max. reikwijdte 30 mm, Kabellengte 0.2 m, Aansluiting via 200 mm kabel, PUR met connector, M8, LED zender, rood, Bedrijfsspanning: 10…30 V DC, PNP-schakeluitgang, N.O.
