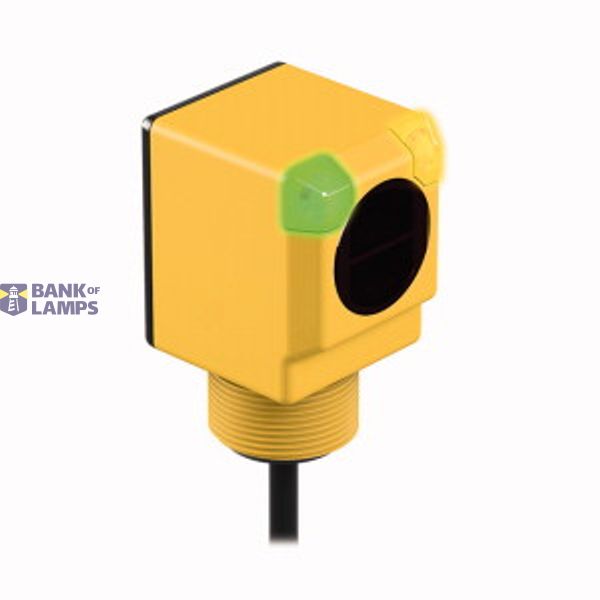

Photoelectric Sensor Diffuse Mode Sensor with Fixed-Field Background Suppression Q40RW3FF600 W/30
Order only
Price (excl. VAT):
Price by request
EAN: 0662488345648
MPN: 3034564
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse Mode Sensor with Fixed-Field Background Suppression Q40RW3FF600 W/30 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin* | US |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Adjustment range | 0 mm |
| Switching frequency | 40 Hz |
| Response time | 16 ms |
| Max. switching distance | 600 mm |
| Sensing mode | Dark switching |
| Rated switching distance | 600 mm |
Packing details
| Packing level 1 | 0662488345648, 0662488345648 |
Other Technical data
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -40 °C |
| With time function | No |
| Type of electric connection | Cable |
| Type of switching output | Relay contact |
| Type of switch function | Other |
| Setting procedure | Other |
| Construction type housing | Cuboid |
| Type of light | Infrared light |
| Min. reflector distance | 0 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Pre failure notice | No |
| Wavelength of the sensor | 880 nm |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |

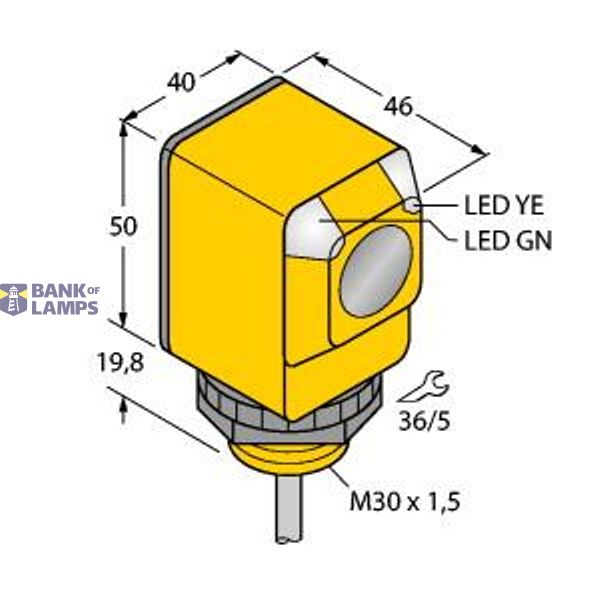

| Width sensor | 40.1 mm |
| Diameter sensor | 30 mm |
| Height of sensor | 69.8 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| Length of sensor | 46 mm |
| With reflector | No |
| With other analogue output | No |
Downloads
Description
Foto-elektrische sensor, diffuse sensor met vaste achtergrondonderdrukking, Bedrijfsspanning 20…250 VAC, max. reikwijdte 600 mm, Kabellengte 9 m, kabel, 2 m, beschermingsgraad IP67, omgevingstemperatuur: -40…+70 °C
