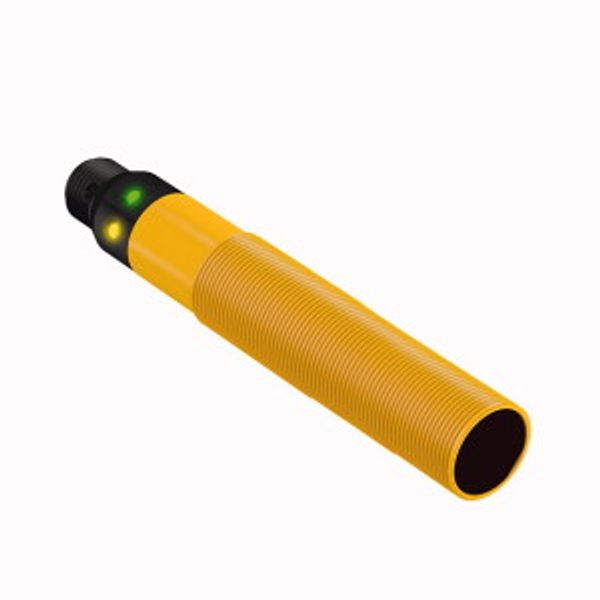

Photoelectric Sensor Diffuse Mode Sensor S18AW3DLQ1
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 0662488351472
MPN: 3035147
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse Mode Sensor S18AW3DLQ1 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5080 00 |
| Switching frequency | 40 Hz |
| Type of electric connection | Connector 1/2 inch |
| Type of switching output | Relay contact |
| Type of switch function | Other |
| Type of light | Infrared light |
| Wavelength of the sensor | 880 nm |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 0662488351472, 0662488351472 |
Other Technical data
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -40 °C |
| With time function | No |
| Setting procedure | Other |
| Construction type housing | Cylinder, screw-thread |
| Min. reflector distance | 2 mm |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Response time | 16 ms |
| Pre failure notice | No |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Diameter sensor | 18 mm |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface Ethernet | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-232 | No |
| With communication interface RS-422 | No |
| With communication interface RS-485 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |

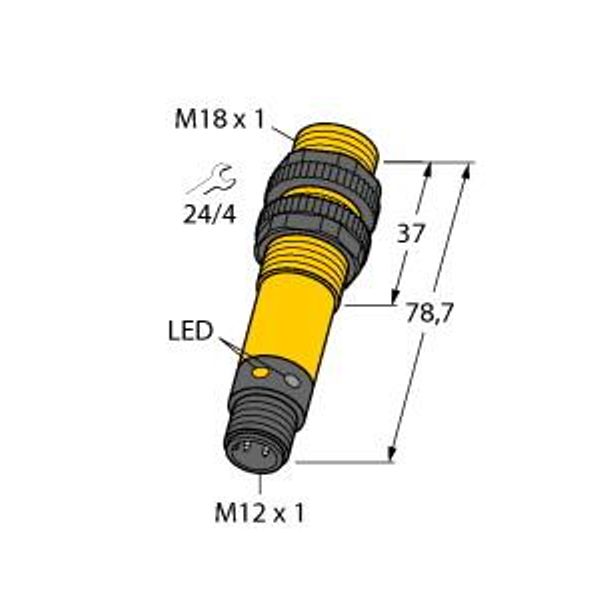

| Length of sensor | 78.7 mm |
| Max. switching distance | 300 mm |
| With reflector | No |
| With other analogue output | No |
| Sensing mode | Light switching |
Downloads
Description
Foto-elektrische sensor, diffuse sensoren, Bedrijfsspanning 20…250 VAC, max. reikwijdte 300 mm, connector, M12 x 1 micro (AC), 4-polig, beschermingsgraad IP67/IP69K, omgevingstemperatuur: -40…+70° C, naar keuze licht-/donkerschakelend of lichtschakelend met alarmfunctie
