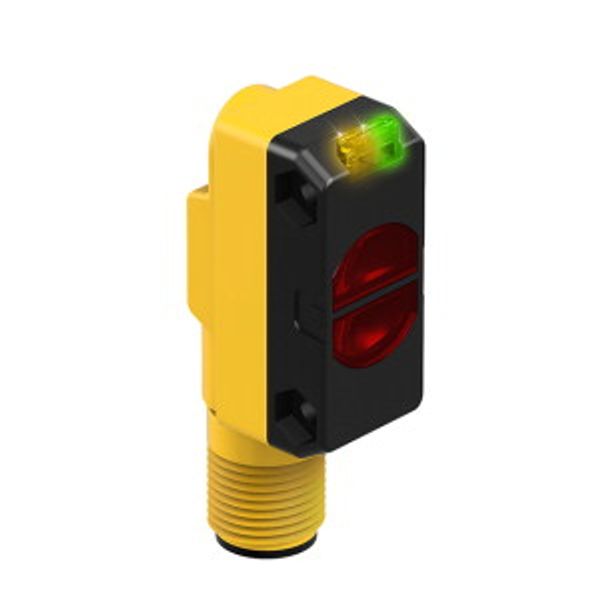

Photoelectric Sensor Diffuse Mode Sensor QS18VP6DLQ8
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
137,51 €
EAN: 0662488005702
MPN: 3800772
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse Mode Sensor QS18VP6DLQ8 |
| Brand | Banner |
| Categories |
Photoelectric Sensors
|
| Country of origin | CN |
| Harmonized System Code | 8536 5019 00 |
| Switching frequency | 800 Hz |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP |
| Type of switch function | Change-over contact (NO/NC) |
| Type of light | Infrared light |
| Wavelength of the sensor | 940 nm |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 0662488005702, 0662488005702 |
Other Technical data
| Housing material | Plastic |
| Suitable for safety functions | No |
| Ambient temperature | -20 °C |
| Construction type housing | Cuboid |
| Response time | 0.85 ms |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |

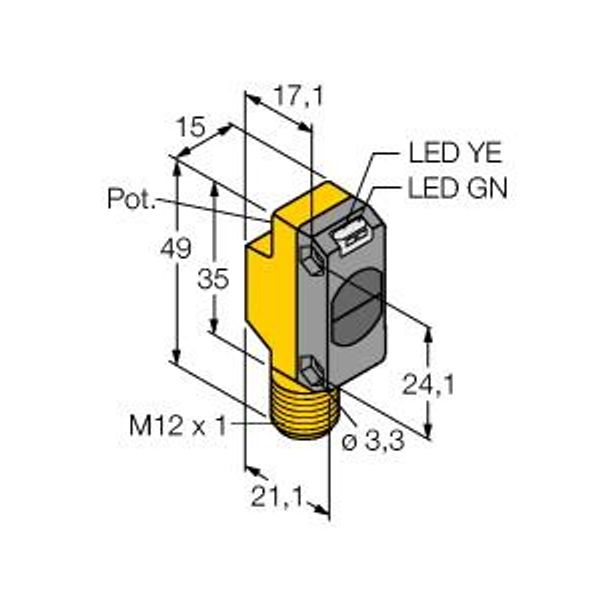

| Width sensor | 15 mm |
| Diameter sensor | 18 mm |
| Height of sensor | 35 mm |
| Length of sensor | 21.1 mm |
| Max. switching distance | 600 mm |
Downloads
Description
Foto-elektrische sensor, diffuse sensoren, Bedrijfsspanning 10…30 VDC, max. reikwijdte 600 mm, connector, M12 x 1, 4-polig, beschermingsgraad IP67, LED rondom zichtbaar, gevoeligheidsinstelling met potentiometer, bedrijfsspanning: 10…30 VDC, PNP-schakeluitgang, wisselcontact
