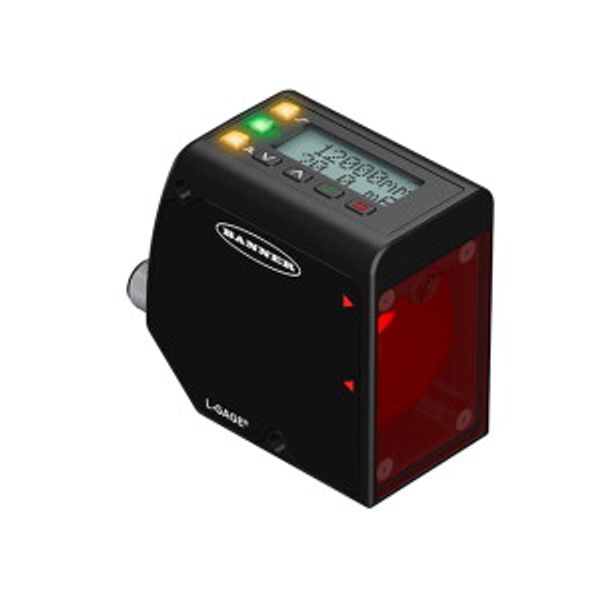

Photoelectric Sensor Diffuse-Mode Laser Sensor (Runtime Measurement) LTF24IC2LDQ
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 678,85 €
EAN: 0662488010157
MPN: 3801449
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse-Mode Laser Sensor (Runtime Measurement) LTF24IC2LDQ |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP/NPN |
| Type of switch function | Normally open contact (NO) |
| Construction type housing | Cuboid |
| Type of light | Polarity free red light |
| Supply voltage | 12 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 0662488010157, 0662488010157 |
Other Technical data
| Housing material | Other |
| Switching frequency | 250 Hz |
| Laser protection class | Class 2 |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Width sensor | 26 mm |
| Height of sensor | 56 mm |
| Length of sensor | 77 mm |
Downloads
Description
Foto-elektrische sensor, Diffuse lasersensor (looptijdmeting), Met analoge uitgang, Bedrijfsspanning 12…30 VDC, max. reikwijdte 24000 mm, 2-cijferig display met 8 segmenten, Draaibare connector, M12 × 1, 5-polig, Reikwijdte: 0,05…24 m, Laserklasse 2, rood, 660 nm, volgens IEC 60825-1:2007, Resolutie: 0,3…4 mm, Bedrijfsspanning: 12…30 VDC, PNP/NPN-schakeluitgang, programmeerbaar, Analoge uitgang: 4…20 mA
