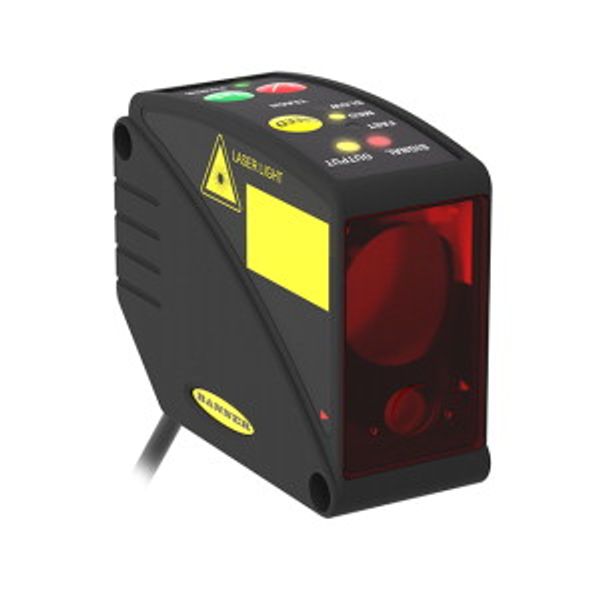

Photoelectric Sensor Diffuse-Mode Laser Sensor (Runtime Measurement) LT3PI
Order only
Price (excl. VAT):
3 557,85 €
EAN: 0662488655143
MPN: 3065514
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Photoelectric Sensor Diffuse-Mode Laser Sensor (Runtime Measurement) LT3PI |
| Brand | Banner |
| Categories |
Distance Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5019 00 |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Cable |
| Type of switching output | PNP |
| Type of switch function | Normally open contact (NO) |
| Construction type housing | Cuboid |
| Type of light | Polarity free red light |
| Supply voltage | 12 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 0662488655143, 0662488655143 |
Other Technical data
| Housing material | Plastic |
| With time function | No |
| Switching frequency | 1000 Hz |
| Setting procedure | Teach-In |
| Laser protection class | Class 2 |
| Pre failure notice | No |
| Material of optical surface | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |

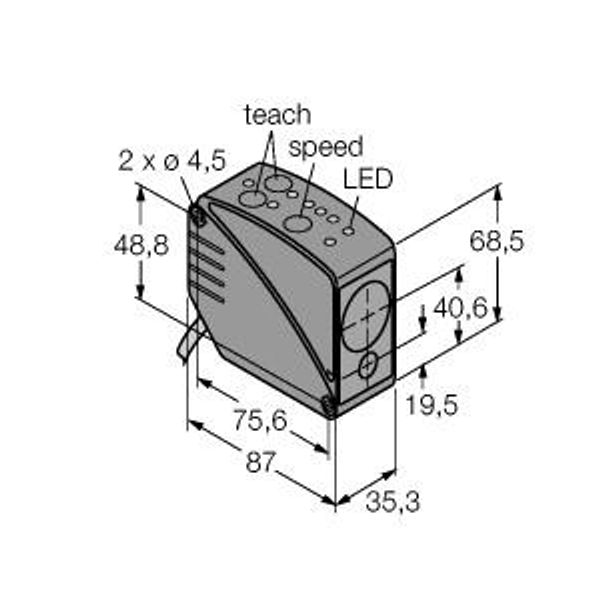

| Width sensor | 35.3 mm |
| Height of sensor | 68.5 mm |
| Length of sensor | 87 mm |
Downloads
Description
Foto-elektrische sensor, Diffuse lasersensor (looptijdmeting), Met schakel- en analoge uitgang, Bedrijfsspanning 12…24 VDC, max. reikwijdte 5000 mm, Kabellengte 2 m, kabel, 2 m, 7-draads, weergave van de signaalsterkte, beschermingsgraad IP67, reikwijdte (meetbereik) op object (wit): 5 m, 3 schakeluitgang-aanspreektijden instelbaar, bedrijfsspanning: 12…24 VDC, schakel- en meetbereik onafhankelijk van elkaar instelbaar, flank van de analoge uitgang omkeerbaar
