Photoelectric sensor, aluminum die cast (chrome plating) case, red las

Order only

EAN: 4550431116178

MPN: E3AS0207D

Package: 1

Price (excl. VAT)

247,72 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

Price valid until 01.01.99 or while in stock

Technical Information

Item condition	New
Manufacture name	Photoelectric sensor, aluminum die cast (chrome plating) case, red las
Brand	Omron
Categories	Photoelectric Sensors
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5019 00
ETIM	EC002719
Adjustment range	50-6000 mm
Switching frequency	250 Hz
Response time	2 ms
Operating distance	50-6000 mm
Max. switching distance	6000 mm
Sensing mode	Light switching
Rated switching distance	6000 mm
Triangulation	Background fade-out

Packing details

Packing level 1

4550431116178, 4550431116178

Other Technical data

Voltage type	DC
Max. output current	100 mA
Housing material	Metal
Suitable for safety functions	No
Ambient temperature	-30-55 °C
With time function	No
Number of semiconductor outputs with signalling function	2
Number of contact energized outputs with signalling function	0
Number of protected semiconductor outputs	0
Number of protected contact energized outputs	0
Type of interface for safety communication	Other
Type of electric connection	Connector M12
Type of switching output	PNP
Type of switch function	Programmable/configurable
Rated control supply voltage at DC	10-30 V
Operation agent-safety class	Safety class 3
Setting procedure	Parameterization
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Laser protection class	Class 1
Type of light	Laser diode, red light
Light dot	38 mm²
With monitoring function downstream switching devices	No
With restart blockage	No
Pre failure notice	No
Wavelength of the sensor	660 nm
Material of optical surface	Plastic
Material of cable sheath	Other
Degree of protection (IP)	IP67
Analogue output 0 V ... 10 V	No
Analogue output 0 mA ... 20 mA	No
Analogue output -10 V ... +10 V	No
Analogue output 4 mA ... 20 mA	Yes
AWG-number	20
Width sensor	26.5 mm
Height of sensor	58.6 mm
With communication interface analogue	Yes
With communication interface AS-Interface	No
With communication interface CANOpen	No
With communication interface DeviceNet	No
With communication interface Ethernet	No
With communication interface INTERBUS	No
With communication interface PROFIBUS	No
With communication interface RS-232	No
With communication interface RS-422	No
With communication interface RS-485	No
With communication interface SSD	No
With communication interface SSI	No
Length of sensor	68.4 mm
With reflector	No
With other analogue output	No
Degree of protection (NEMA)	Other

Downloads

Product data sheet

Description

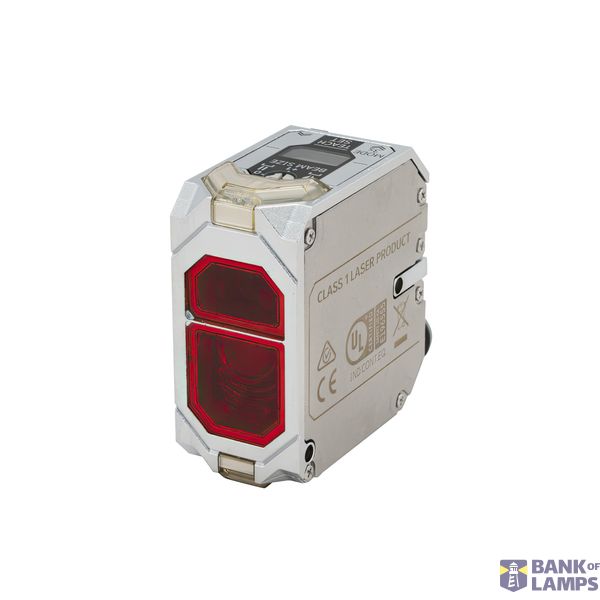

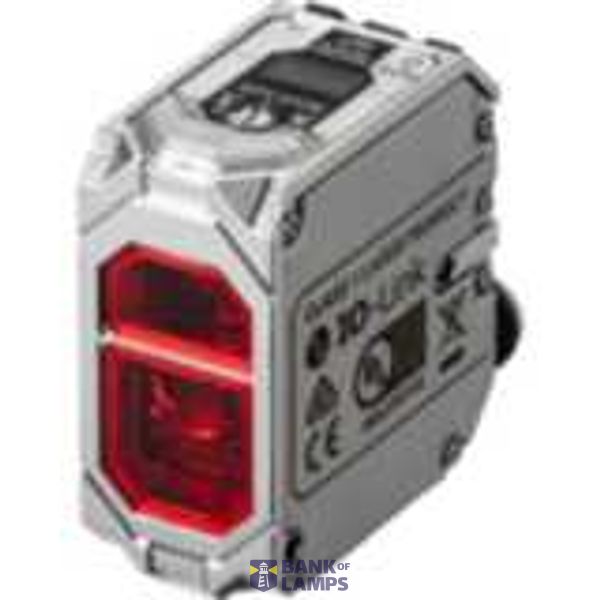

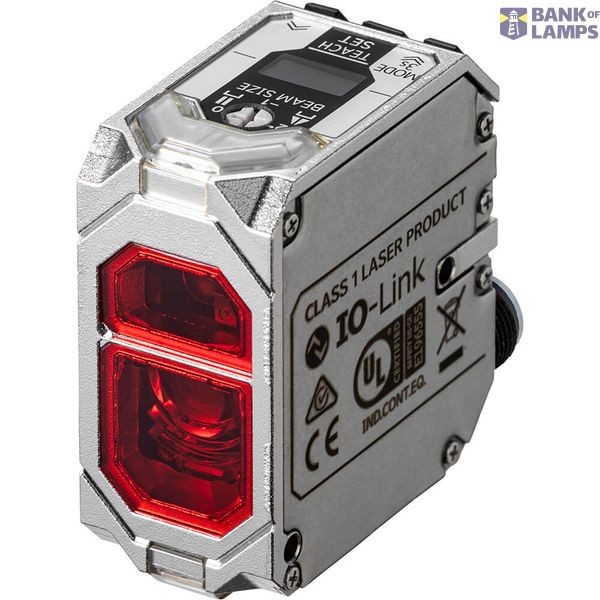

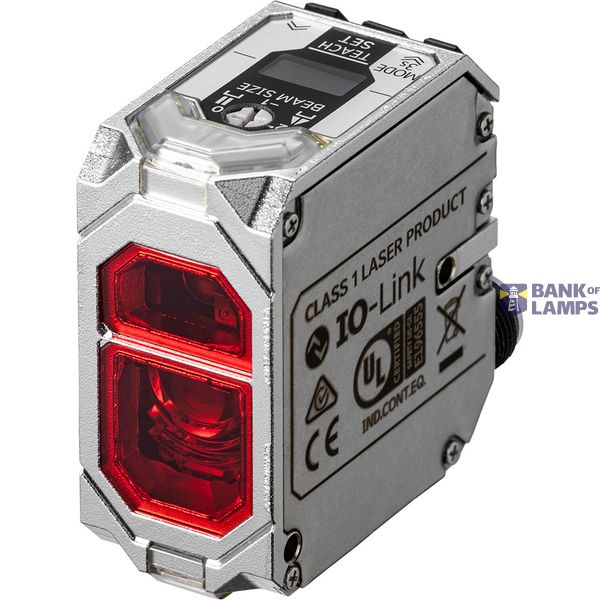

Photoelectric sensor, aluminum die cast (chrome plating) case, red laser class 1, time-of-flight, diffused beam type, 6000 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 connector (horizontal)
