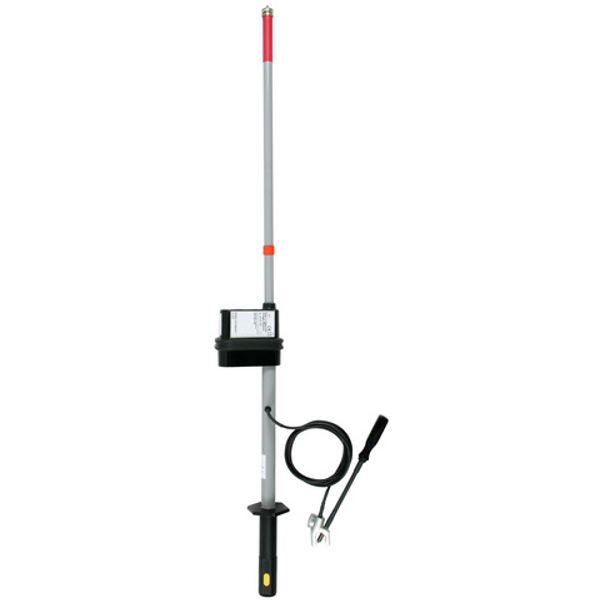

PHE/G I d.c. voltage detector f. switch- gears, test prod w. pos. pole
Order only
Price (excl. VAT):
3 103,82 €
EAN: 4013364157071
MPN: 767666
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PHE/G I d.c. voltage detector f. switch- gears, test prod w. pos. pole |
| Brand | Dehn |
| Categories |
Electrical Safety Equipment
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9030 3370 00 |
| Nominal voltage | 1-24 kV |
Packing details
| Packing level 1 | 4013364157071, 4013364157071 |
Other Technical data
| Model | 2-pole |
| Application | Switchgears |
| Voltage type | DC |
| Type of indication | Optic |
| Immersing depth | 535 mm |
| Scope of application | Interior and outdoor installations |
| With self-test mechanism | Yes |
| Usable at precipitation | Yes |

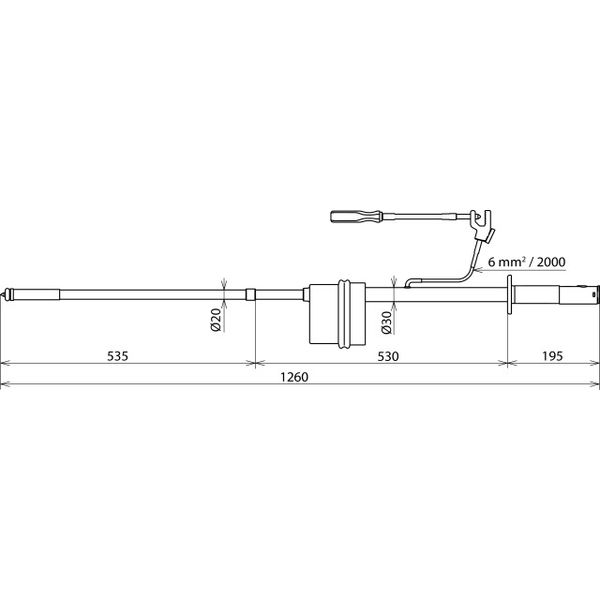

| Total length | 1260 mm |
| Extendable handle area | Yes |
Downloads
Description
Single-pole resistive PHE/G d.c. voltage detector for switchgear installations (positive pole on test prod) as a complete device based on EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage by making contact at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations up to 24 kV d.c. Earth-side clamp with adjustable handle and magnetic contact. Suitable for use in wet weather conditions.
