PHE/G I d.c. voltage detector f. overhead contact lines w. pos. pole o

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

4 537,74 €

This price is valid until 31.12.25

EAN: 4013364135208

MPN: 767610

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	PHE/G I d.c. voltage detector f. overhead contact lines w. pos. pole o
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	9030 3370 00
Nominal voltage	3 kV

Packing details

Packing level 1

4013364135208, 4013364135208

Other Technical data

Model	2-pole
Application	Railway systems
Voltage type	DC
Type of indication	Optic
Immersing depth	1015 mm
Scope of application	Interior and outdoor installations
With self-test mechanism	Yes
Usable at precipitation	Yes
Total length	4125 mm
Extendable handle area	Yes

Downloads

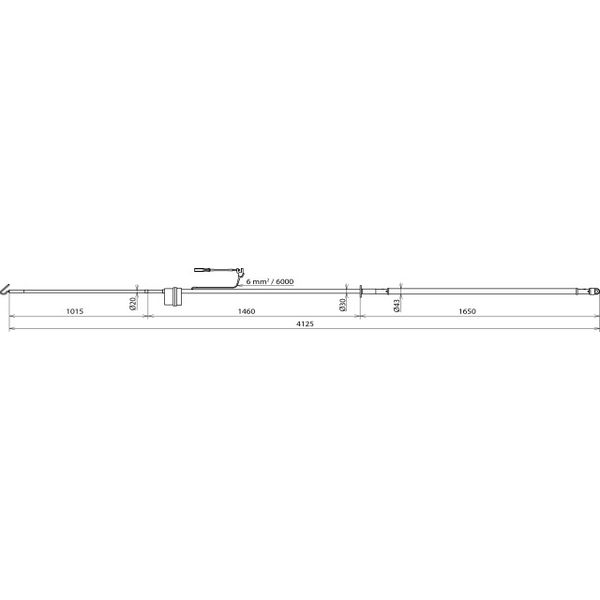

Product data sheet Dimensioned drawing Deep link REACH

Description

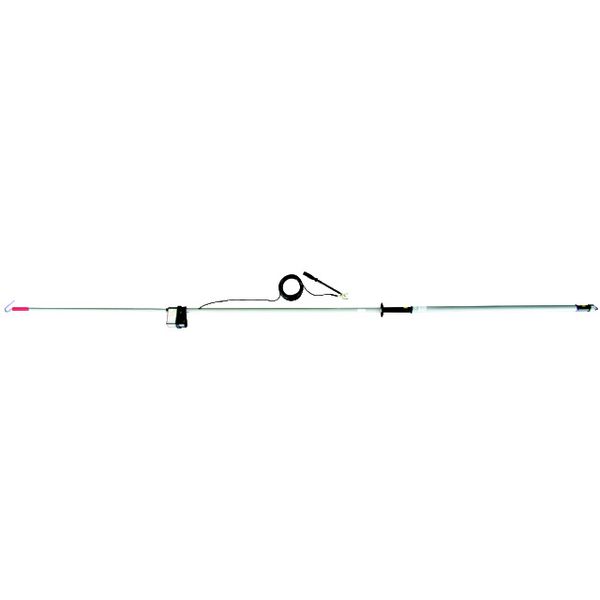

Single-pole resistive PHE/G d.c. voltage detector for overhead contact lines (positive pole on test prod) as a complete device based on EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage by making contact at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations from 600 to 750 V d.c. Earth-side clamp with adjustable handle and magnetic contact. Suitable for use in wet weather conditions.
