PHE/G I d.c. voltage detector f. overh. cont. lines w. neg. pole on te

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

4 814,58 €

This price is valid until 31.12.25

EAN: 4013364135307

MPN: 767614

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	PHE/G I d.c. voltage detector f. overh. cont. lines w. neg. pole on te
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	9030 3370 00
Nominal voltage	1.65 kV

Packing details

Packing level 1

4013364135307, 4013364135307

Other Technical data

Model	1-pole
Application	Railway systems
Voltage type	DC
Type of indication	Optic
Immersing depth	1015 mm
Scope of application	Interior and outdoor installations
With self-test mechanism	Yes
Usable at precipitation	Yes
Total length	4060 mm
Extendable handle area	Yes

Downloads

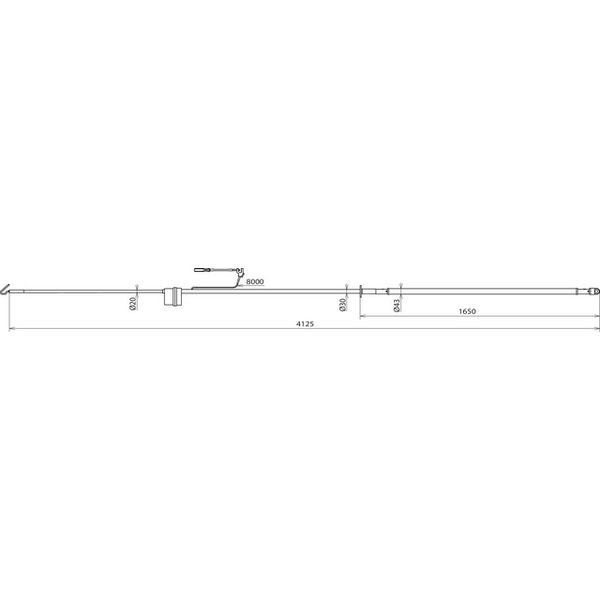

Product data sheet Dimensioned drawing Deep link REACH

Description

Single-pole resistive PHE/G d.c. voltage detector for overhead contact lines (negative pole on test prod) as a complete device based on EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage by making contact at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations up to 1.65 kV DC. Earth-side clamp with adjustable handle. Suitable for use in wet weather conditions.
