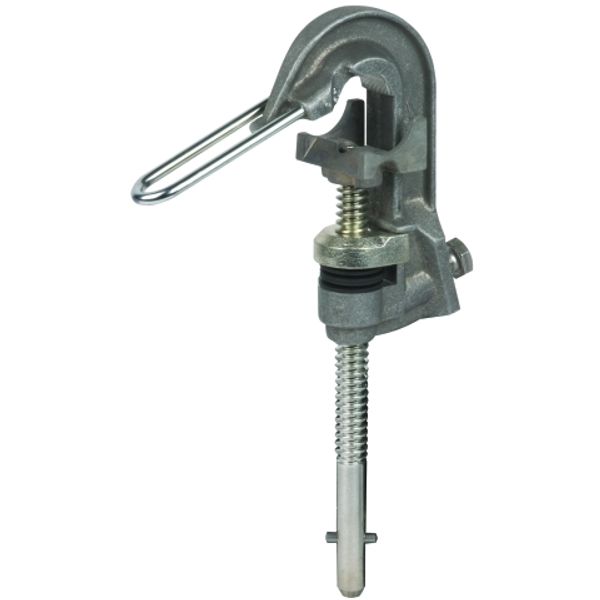

Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c image 1
Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c image 2
Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c thumbnail 1
Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c thumbnail 2
Dehn

Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
295,22 €
This price is valid until 24.12.25
EAN: 4013364006614
MPN: 784401
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Phase screw clamp D 4-30mm T-pin shaft connec. elem. PK1 16-70mm² w. c
Brand Dehn
Categories Tools, measuring instruments and protection
Country of origin DE
Harmonized System Code 8538 9099 00
Connection type Power cable for overhead lines
Clamping range 4-30 mm
Max. short circuit current 19.5 kA
For wire cross section 16-70 mm²

Packing details

Packing level 1 4013364006614, 4013364006614

Other Technical data

Application Phase-side
Anti-rotation protection Yes
Admission of the activation rod Spindle with cross pin

Downloads

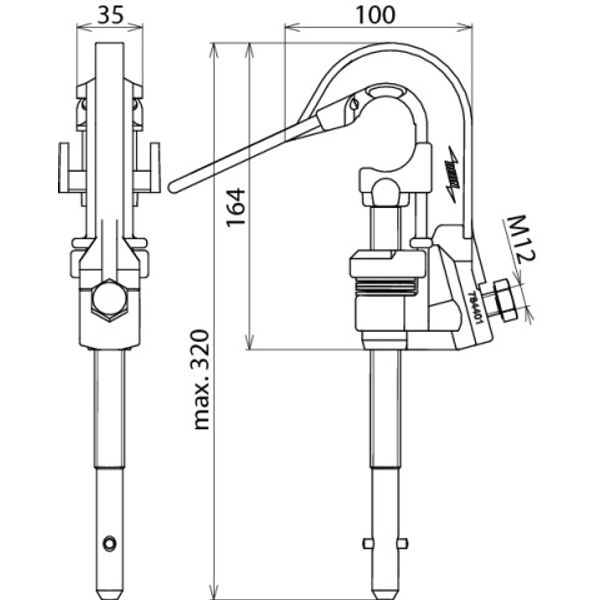

Product data sheet Dimensioned drawing Deep link REACH

Description

Phase screw clamp with coupling aid and long threaded T pin shaft for connecting the phase cables of earthing and short-circuiting devices to the overhead line in accordance with EN/IEC 61230 (DIN VDE 0683-100). PK1 anti-rotation element.
