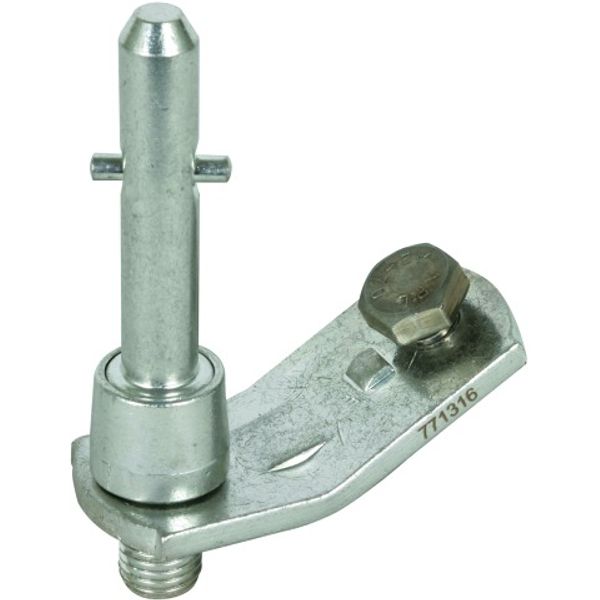

Phase connecting element w. T pin shaft M16x18mm f. cable lug PK1 16-1

Order only

Price (excl. VAT):

150,21 €

This price is valid until 24.12.25

EAN: 4013364150393

MPN: 771316

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Phase connecting element w. T pin shaft M16x18mm f. cable lug PK1 16-1
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Connection type	Stud bolt
Max. short circuit current	42 kA
For wire cross section	16-150 mm²

Packing details

Packing level 1

4013364150393, 4013364150393

Other Technical data

Application	Phase-side
Anti-rotation protection	Yes
Admission of the activation rod	Spindle with cross pin

Downloads

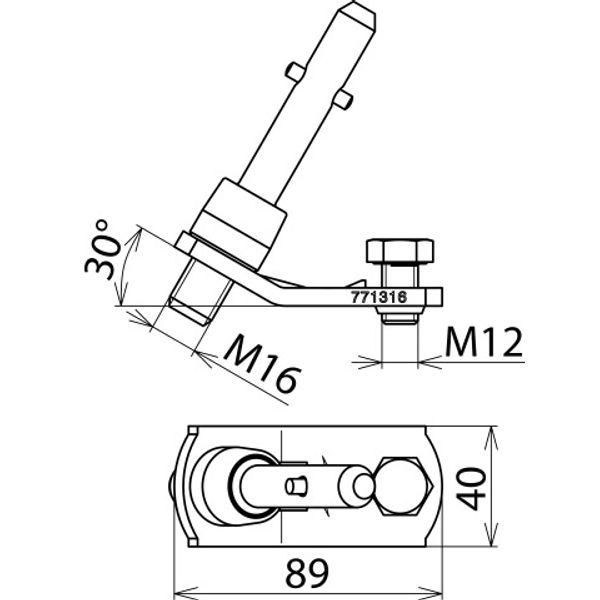

Product data sheet Dimensioned drawing Deep link REACH

Description

Phase connecting element with T pin shaft for use as phase connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100) to be fitted to the phase cable end of earthing and short-circuiting devices. PK1 anti-rotation element.
