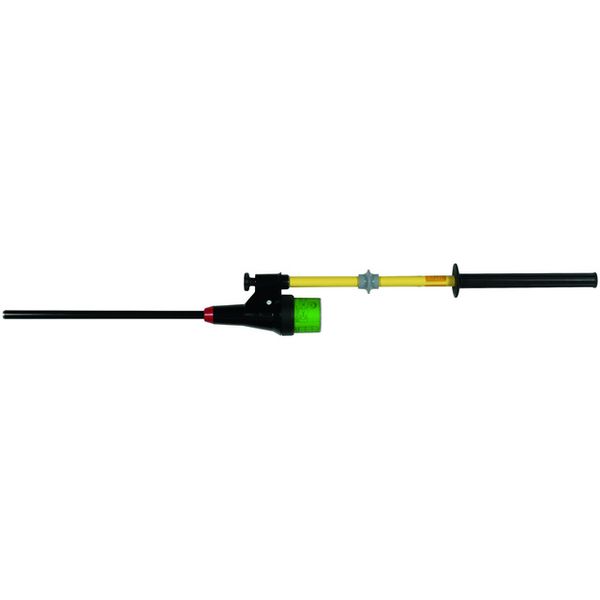

Phase comparator PHV1P single-pole 20..36kV 50Hz

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

3 059,03 €

This price is valid until 31.12.25

EAN: 4013364259263

MPN: 759736

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Phase comparator PHV1P single-pole 20..36kV 50Hz
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	9030 3370 00
Frequency	50 Hz
Nominal voltage	20-36 kV

Packing details

Packing level 1

4013364259263, 4013364259263

Other Technical data

Model	1-pole
Construction	Straight
Type of indication	Optic
Total length	1730 mm
Immersing depth	910 mm
With self-test mechanism	Yes
Usable at precipitation	Yes
For interior installations	Yes
For outdoor installations	Yes

Downloads

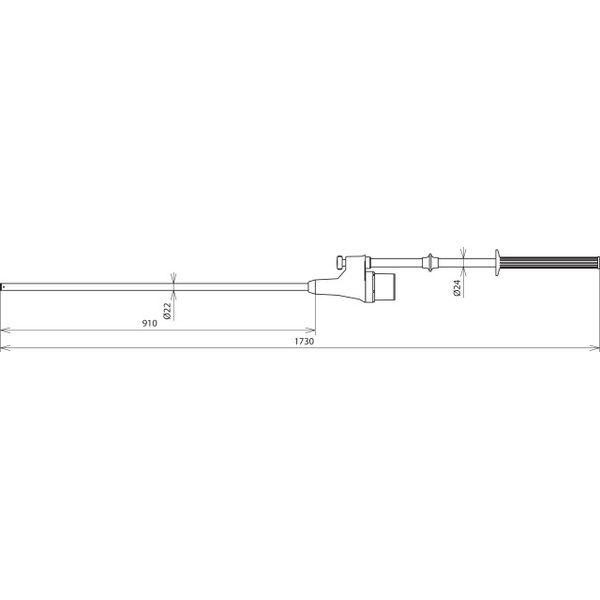

Product data sheet Dimensioned drawing Deep link REACH

Description

Single-pole PHV I capacitive phase comparator in accordance with EN/IEC 61481 (DIN VDE 0682-431) for verifying the in-phase condition on all poles by making contact with three-phase systems in accordance with EN 50110 (DIN VDE 0105-100). For indoor and outdoor installations and for use in wet weather conditions. With self-testing element. Easy transport due to detachable insulating stick.
