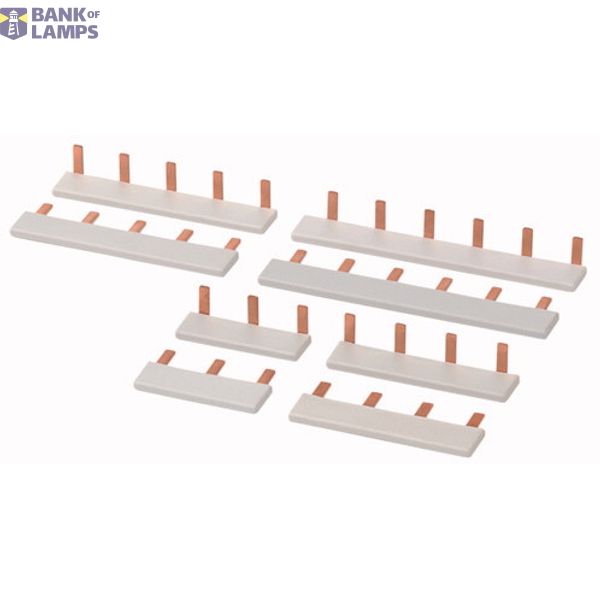

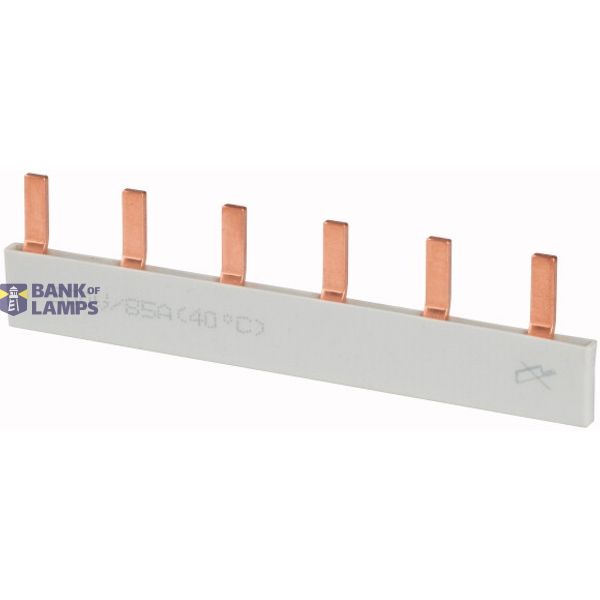

Phase busbar with 6x pins, 1-phase, insulated, straight
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Phase busbar with 6x pins, 1-phase, insulated, straight |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 9099 00 |
| ETIM | EC000215 |
| Insulated | Yes |
| Rated permanent current Iu | 85 A |
| Number of poles | 1 |
Packing details
| Packing level 1 | 8711426745070 |
Other Technical data
| Colour | Other |
| Number of phases | 1 |
| Cross section | 10 mm² |
| Length | 104 mm |
| Conditioned rated short-circuit current Iq | 25 kA |
| Width in number of modular spacings | 5 |
| Rated surge voltage | 4 kV |
| Type of electric connection | Pin |
| Rated short-time withstand current lcw | 10 kA |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 6 |
| Max. rated operation voltage Ue | 500 V |
| Module width | 17.8 mm |
| Can be cut to size | No |
Description
Phase busbar with pins; 1-phase; insulated; grey; phase distance = 5x 17,8 mm; 6x pins; straight; cannot be shortened
