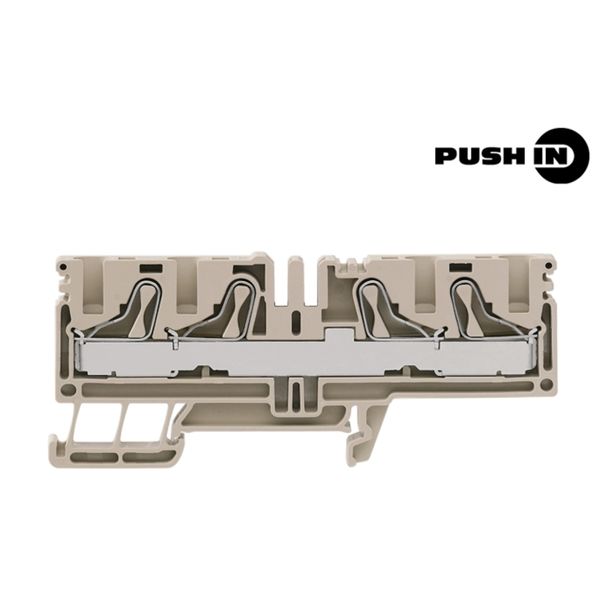

PDU 6/10/4AN
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
2,28 €
Subtotal: 114,00 €
MOQ: 50
EAN: 4032248945542
MPN: 1083040000
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PDU 6/10/4AN |
| Brand | Weidmüller |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin | CN |
| Harmonized System Code | 8536 9010 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 800 V |
| Type of electrical connection 1 | Plug-in connection |
| Number of levels | 1 |
| Number of clamp positions per level | 4 |
| Connectable conductor cross section solid-core | 1.5-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 1.5-10 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 1.5-10 mm² |
| Connectable conductor cross section multi-wired | 10 mm² |
| Rated current In | 57 A |
Packing details
| Packing level 1 | 4032248945542 |
Other Technical data
| Colour | Beige |
| Width | 8.1 mm |
| Height | 97 mm |
| Depth | 40.5 mm |
| Operating temperature | -50-120 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Thermoplastic |
Description
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
