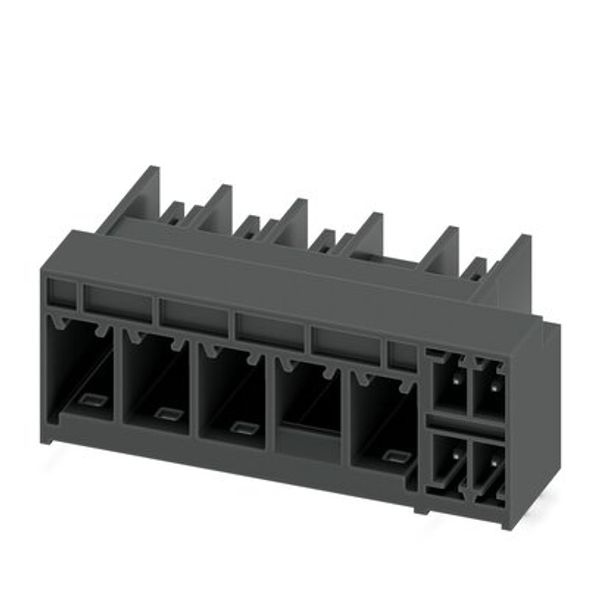

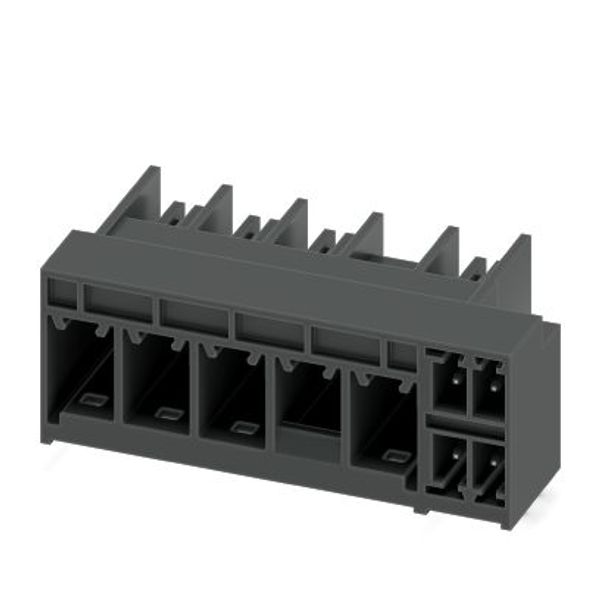

PCH 6/ 4+4-GL4-7,62 BK - Printed-circuit board connector
In stock: No
Vendor stock: No
Minimal order quantity: 50
Price (excl. VAT):
2,94 €
per pcs
Subtotal: 147,00 €
MOQ: 50
EAN: 4055626946030
MPN: 1098839
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PCH 6/ 4+4-GL4-7,62 BK - Printed-circuit board connector |
| Brand | Phoenix Contact |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | CN |
| Harmonized System Code | 8536 6930 00 |
| Rated voltage | 630 V |
| Number of levels | 1 |
| Rated surge voltage | 6 kV |
| Angle PCB/conductor connection | Other |
| Number of electrical connections | 4 |
Packing details
| Packing level 1 | 4055626946030 |
Other Technical data
| Height | 19.5 mm |
| Colour housing | Black |
| Type of fastening | Engage (snap) |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Diameter connection pin | 1.7 mm |
| Length pin | 3.1 mm |
| Modular spacing connections | 7.62 mm |
| Type of banding | Carton (for SMD) |
| Material insulation body | Other |
Description
PCB hybrid header, nominal cross section: 6 mm², color: black, nominal current: 41 A, 8 A, rated voltage (III/2): 630 V, contact surface: Tin, type of contact: Male connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PCH 6/..+4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.1 mm, plug-in system: COMBICON PC 6 hybrid, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Self-locking flange, type of packaging: packed in cardboard
Accessories
In stock: No
Phoenix Contact
CP-PC RD - Coding profile
0,028 €
per pcs
Subtotal: 2,80 €
MOQ: 100
EAN: 4046356568043
MPN: 1701967
Box: 1
