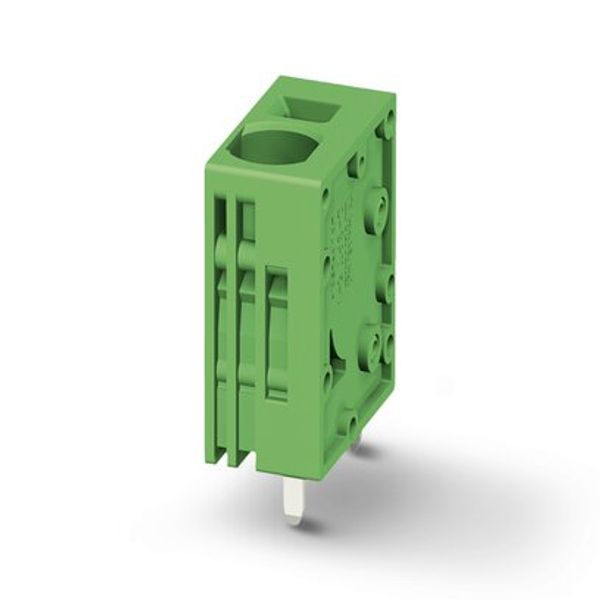

SPT 5/ 6-V-7,5 6RZ MCGN-BU-YE - PCB terminal block

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

7,14 € per pcs

This price is valid until 24.12.25

Subtotal: 357,00 € MOQ: 50

EAN: 4063151099886

MPN: 1141301

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SPT 5/ 6-V-7,5 6RZ MCGN-BU-YE - PCB terminal block
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	DE
Harmonized System Code	8536 9010 00
Rated voltage	1000 V
Number of levels	1
Rated surge voltage	6 kV
Angle PCB/conductor connection	Other
Rated current In	41 A
Number of electrical connections	0

Packing details

Packing level 1

4063151099886

Other Technical data

Height	19 mm
Colour housing	Other
Operating temperature	-40-100 °C
Inflammability class of insulation material according to with UL94	V0
Over voltage category	III
Pollution degree	2
Connection type conductor	Spring clamp connection
Connection type PCB	Other
Diameter connection pin	2.1 mm
Length pin	4.6 mm
Material connection surface	Tin
Modular spacing connections	7.5 mm
Type of banding	Carton (for SMD)
Connectable conductor cross section solid-core	0.2-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-6 mm²
Connectable conductor cross section multi-wired	10 mm²
Material insulation body	Other
Type of PCB fastening	Connecting contact

Description

PCB terminal block, nominal current: 41 A, rated voltage (III/2): 630 V, nominal cross section: 6 mm², number of rows: 1, number of positions per row: 6, product range: SPT 5/..-V, pitch: 7.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: multicolored, Pin layout: Zigzag pinning W, Solder pin [P]: 4.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
