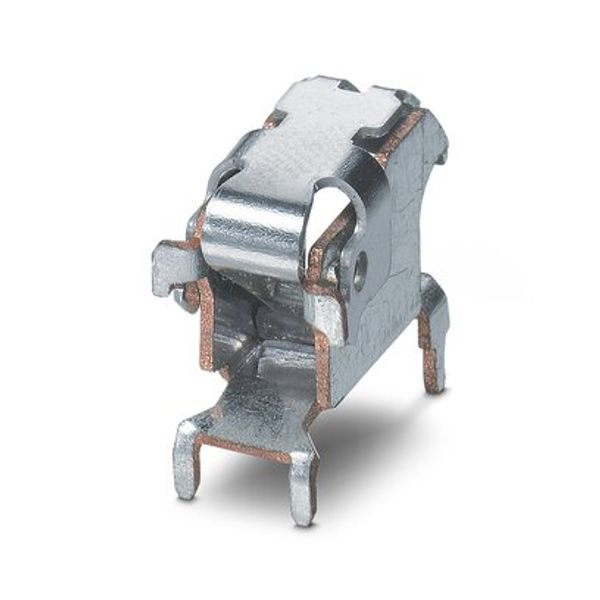

PTSPLO-6/1-2X2 2,1 R32 - PCB terminal block

Name: PTSPLO-6/1-2X2 2,1 R32 - PCB terminal block
Brand: Phoenix Contact
Availability: PreOrder

Order only Minimal order quantity: 220

Price (excl. VAT):

Price by request

This price is valid while stock lasts

Subtotal: 0,00 € MOQ: 220

EAN: 4046356752831

MPN: 1705081

Box: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	PTSPLO-6/1-2X2 2,1 R32 - PCB terminal block
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	0 V
Number of levels	1
Rated surge voltage	0 kV
Angle PCB/conductor connection	Other
Rated current In	41 A
Number of electrical connections	1

Packing details

Packing level 1

4046356752831, 4046356752831

Other Technical data

Height	12.9 mm
Operating temperature	-40-100 °C
Over voltage category	III
Pollution degree	2
Connection type conductor	Spring clamp connection
Connection type PCB	THR connection
Diameter connection pin	1.3 mm
Length pin	2.1 mm
Material connection surface	Tin
Modular spacing connections	0 mm
Type of banding	Blister girdle (for SMD)
Connectable conductor cross section fine-strand without cable end sleeve	2.5-6 mm²
Type of PCB fastening	Connecting contact

Description

PCB terminal block for tin-plated flexible cables, e.g., type PV 1-F, nominal current: 41 A, number of positions: 1, connection method: spring-cage connection, mounting: THT/THR, for user information for through-hole reflow technology, go to: combicon.com
