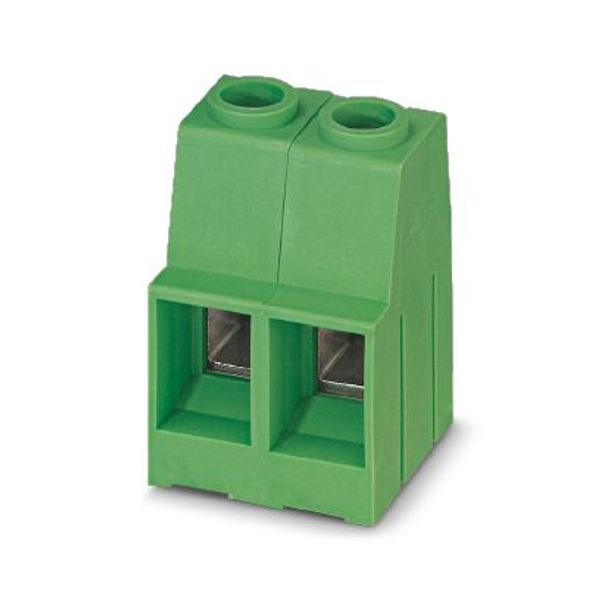

MKDSP 10HV/ 2-10,16 - PCB terminal block

Name: MKDSP 10HV/ 2-10,16 - PCB terminal block
Brand: Phoenix Contact
Price: 2.640 EUR
Availability: PreOrder

Order only Minimal order quantity: 50

Price (excl. VAT):

2,64 € per pcs

This price is valid until 24.12.25

Subtotal: 132,00 € MOQ: 50

EAN: 4017918819637

MPN: 1929517

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	MKDSP 10HV/ 2-10,16 - PCB terminal block
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	PL
Harmonized System Code	8536 9010 00
Rated voltage	1000 V
Number of levels	1
Rated surge voltage	8 kV
Angle PCB/conductor connection	Other
Rated current In	76 A
Number of electrical connections	2

Packing details

Packing level 1

4017918819637, 4017918819637

Other Technical data

Height	35.8 mm
Colour housing	Green
Operating temperature	-40-100 °C
Inflammability class of insulation material according to with UL94	V0
Over voltage category	III
Pollution degree	2
Connection type conductor	Screw connection
Connection type PCB	Other
Diameter connection pin	1.5 mm
Length pin	5 mm
Material connection surface	Tin
Modular spacing connections	10.16 mm
Type of banding	Carton (for SMD)
Connectable conductor cross section solid-core	0.5-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-16 mm²
Connectable conductor cross section multi-wired	0.5-4 mm²
Material insulation body	Other
Type of PCB fastening	Connecting contact

Description

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSP 10HV, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
