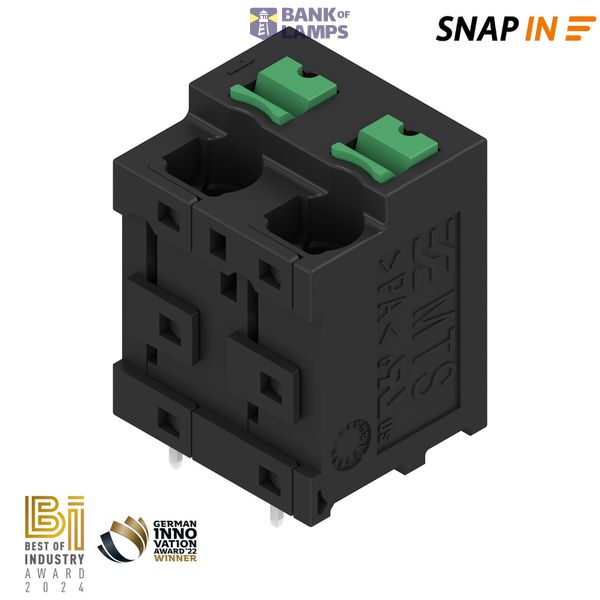

PCB terminal, 600 V, 32 A, Pitch in mm: 7.50, 4 mm², Number of poles:

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099987278829

MPN: 3124680000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PCB terminal, 600 V, 32 A, Pitch in mm: 7.50, 4 mm², Number of poles:
Brand	Weidmüller
Categories	PCB Connectors & Terminals
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
ETIM	EC002643
Rated voltage	600 V
Number of levels	1
Rated surge voltage	6 kV
Degree of protection (IP), mounted	IP20
Angle PCB/conductor connection	90° (upwards vertical)
Rated current In	32 A
Number of electrical connections	2

Packing level 1

4099987278829, 4099987278829

Height	22.5 mm
Colour housing	Black
Operating temperature	-50-125 °C
Type of fastening	Solder
Connection type conductor	Spring clamp connection
Connection type PCB	THR connection
Length pin	3.5 mm
Modular spacing connections	7.5 mm
Type of banding	Other
Connectable conductor cross section solid-core	0.5-2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-4 mm²
Connectable conductor cross section multi-wired	0.5-4 mm²
Material insulation body	Polyamide (PA)
Type of PCB fastening	Other

PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
