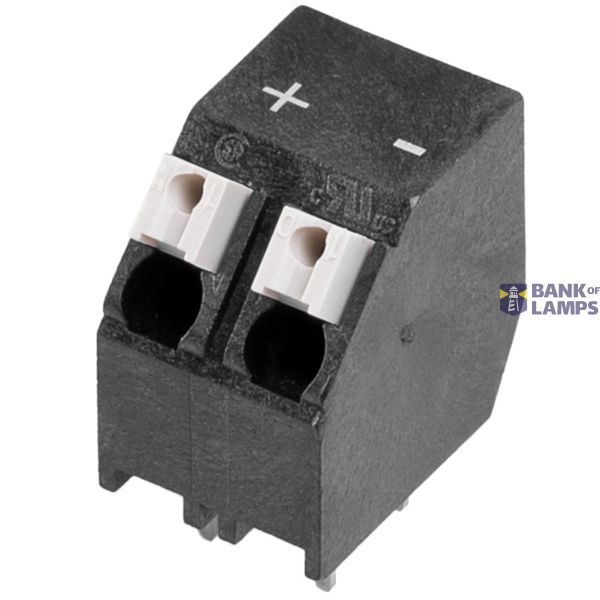

PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.00, 1.5 mm², Number of pol

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4099987081740

MPN: 3077570000

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.00, 1.5 mm², Number of pol
Brand	Weidmüller
Categories	PCB Connectors & Terminals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6930 00
ETIM	EC002643
Rated voltage	320 V
Number of levels	1
Rated surge voltage	4 kV
Degree of protection (IP), mounted	IP20
Angle PCB/conductor connection	45°/135° (downwards inclined)
Rated current In	17.5 A
Number of electrical connections	2

Packing level 1

4099987081740, 4099987081740

Height	16.4 mm
Colour housing	Black
Operating temperature	-50-120 °C
Type of fastening	Solder
Inflammability class of insulation material according to with UL94	V0
Over voltage category	II
Pollution degree	2
Connection type conductor	Push-in clamp connection
Connection type PCB	THR connection
Length pin	3.5 mm
Modular spacing connections	5 mm
Type of banding	Other
Connectable conductor cross section solid-core	0.2-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-1.5 mm²
Material insulation body	Liquid crystal polymer
Type of PCB fastening	Other

Declaration EPD (Environmental Product Declaration)

PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.
