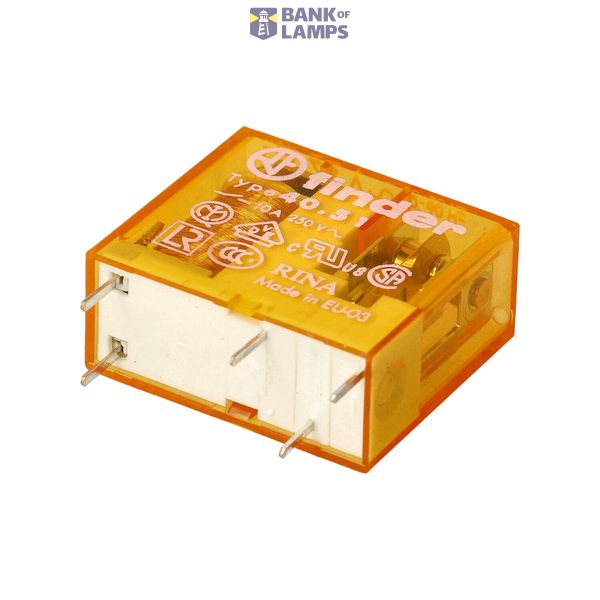

PCB/Plug-in Rel. 5mm.pinning 1CO 10A/230VAC/AgSnO2 (40.51.8.230.4000)

Name: PCB/Plug-in Rel. 5mm.pinning 1CO 10A/230VAC/AgSnO2 (40.51.8.230.4000)
Brand: FINDER
Availability: Discontinued

Discontinued Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	PCB/Plug-in Rel. 5mm.pinning 1CO 10A/230VAC/AgSnO2 (40.51.8.230.4000)
Brand	FINDER
ETIM	EC001437
Nominal current	10 A
Type of electric connection	Plug-in connection
Rated control supply voltage at AC 50 Hz	230 V
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1	8012823131054
Packing level 2	8012823104164

Other Technical data

Width	12.4 mm
Height	25 mm
Depth	29 mm
Drive, switching attitude	Mono stable
Rated control supply voltage at AC 60 Hz	230 V
Number of contacts as change-over contact	1

Downloads

Product picture

Description

PCB/Plug-in relays (A): 10 Nr.contacts: 1 Contacts configuration: CO Type of electric connection: Plug-in connection Coil version: AC Volt AC: 230 V. Mono stable Environmental Protection: RT II. Accessories: Socket S.95
