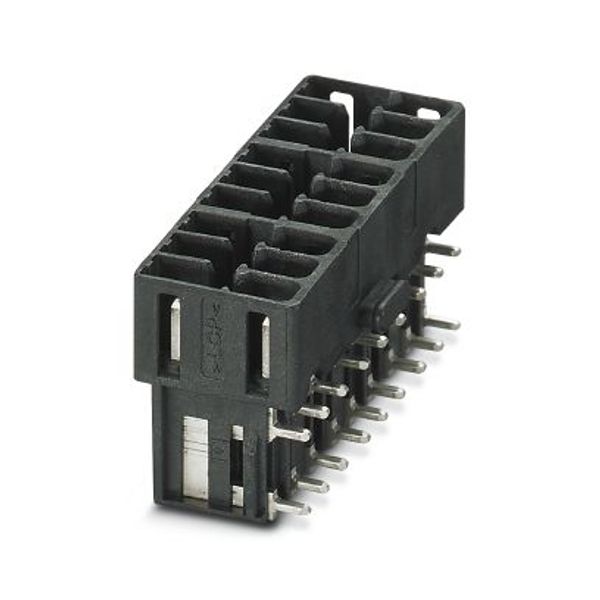

HSCH 1,5-3U/18 THR 9005 - PCB header
In stock: No
Vendor stock: No
Minimal order quantity: 150
Price (excl. VAT):
5,37 €
per pcs
Subtotal: 805,50 €
MOQ: 150
EAN: 4055626386775
MPN: 2203408
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | HSCH 1,5-3U/18 THR 9005 - PCB header |
| Brand | Phoenix Contact |
| Categories |
PCB Connectors & Terminals
|
| Country of origin | PL |
| Harmonized System Code | 8536 6930 00 |
| Type of connection | Printed circuit board to cable |
| Rated voltage | 160 V |
| Number of poles | 18 |
| Operating temperature | -40-105 °C |
| Rated surge voltage | 2.5 kV |
| Type of electric connection | Other |
| Connector model | Fixed connector |
| Angle PCB/contact | Other |
| Rated current In | 8 A |
Packing details
| Packing level 1 | 4055626386775, 4055626386775 |
Other Technical data
| Colour housing | Black |
| Contact type | Pin |
| Type of fastening | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| Over voltage category | III |
| Pollution degree | 2 |
| Diameter connection pin | 1.2 mm |
| Length pin | 2.3 mm |
| Modular spacing connections | 3.45 mm |
| Number of plug-in contact rows | 2 |
| Type of banding | Other |
| Suitable for PCB thickness | 0 mm |
| Modular spacing contacts | 3.45 mm |
| Material insulation body | Other |
| Type of PCB fastening | Other |
Description
PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 18, number of rows: 2, number of positions: 18, number of connections: 18, product range: HSCH 1,5/..-G-THR, pitch: 3.45 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.3 mm, number of solder pins per potential: 1, plug-in system: HSC 1,5, Pin connector pattern alignment: Standard, Locking: without, mounting: without, type of packaging: 56 mm wide tape
