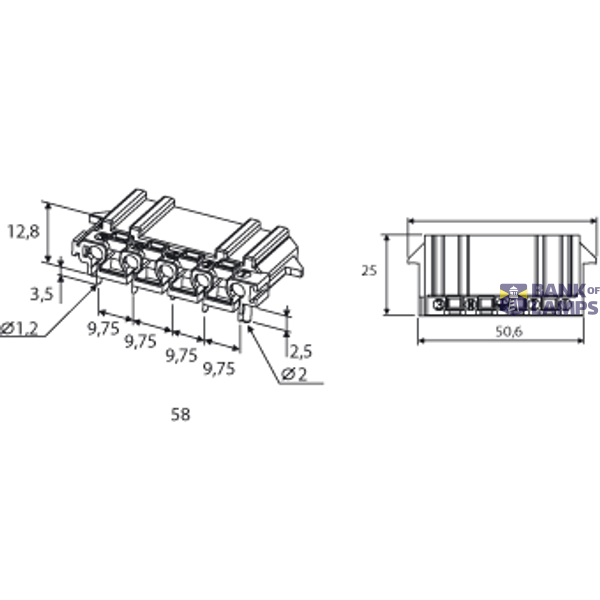

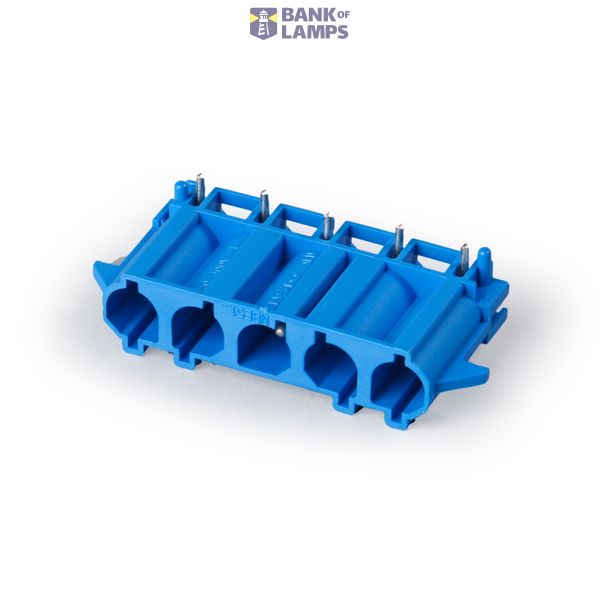

PCB coupler 5p plug, horiz., narrow, blue image 1
PCB coupler 5p plug, horiz., narrow, blue image 2
PCB coupler 5p plug, horiz., narrow, blue image 3
PCB coupler 5p plug, horiz., narrow, blue thumbnail 1
PCB coupler 5p plug, horiz., narrow, blue thumbnail 2
PCB coupler 5p plug, horiz., narrow, blue thumbnail 3
Ensto

PCB coupler 5p plug, horiz., narrow, blue

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name PCB coupler 5p plug, horiz., narrow, blue
Brand Ensto
ETIM EC002566
Model Plug
Connection type Soldering connection
Locking mechanism Integrated in plug-in connector
Rated current 20 A
Rated voltage 250 V
Number of poles 5
Housing material Polyamide (PA)
Contact material CuZn
Degree of protection (IP) IP20

Packing details

Packing level 1 6418677701160
Packing level 2 6418677701160
Packing level 3 6418677701160

Other Technical data

Halogen free Yes
Angle of plug Angled
Mechanical coding Yes
Built-in version Built-in part/plug-in connection

Description

Printed circuit board couplers are designed for internal connections in the device. The range includes models for both horizontal and vertical mounting.
