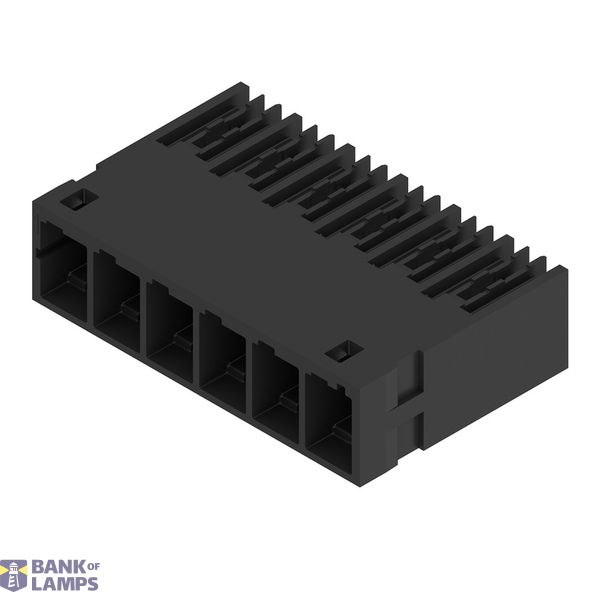

PCB connector (board connection), 800 V, 47.2 A, Pitch in mm: 6.35, Nu
Order only
Price (excl. VAT):
Price by request
EAN: 4099987305020
MPN: 3128920000
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | PCB connector (board connection), 800 V, 47.2 A, Pitch in mm: 6.35, Nu |
| Brand | Weidmüller |
| Categories |
PCB Connectors & Terminals
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6930 00 |
| ETIM | EC002637 |
| Type of connection | Flexible PCB-connector |
| Rated voltage | 800 V |
| Number of poles | 6 |
| Operating temperature | -50-125 °C |
| Rated surge voltage | 6 kV |
| Type of electric connection | THR connection |
| Connector model | Fixed connector |
| Angle PCB/contact | 0°/180° (horizontal) |
| Rated current In | 42.5 A |
Packing details
| Packing level 1 | 4099987305020, 4099987305020 |
Other Technical data
| Colour housing | Black |
| Contact type | Pin |
| Type of fastening | Solder |
| Material of contact surface | Tin |
| Length pin | 3.2 mm |
| Modular spacing connections | 6.35 mm |
| Number of plug-in contact rows | 1 |
| Type of banding | Other |
| Modular spacing contacts | 6.35 mm |
| Material insulation body | Polyamide (PA) |
| Type of PCB fastening | Other |
Description
Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
