Register to unlock your exclusive B2B prices and start shopping. Sign up now!

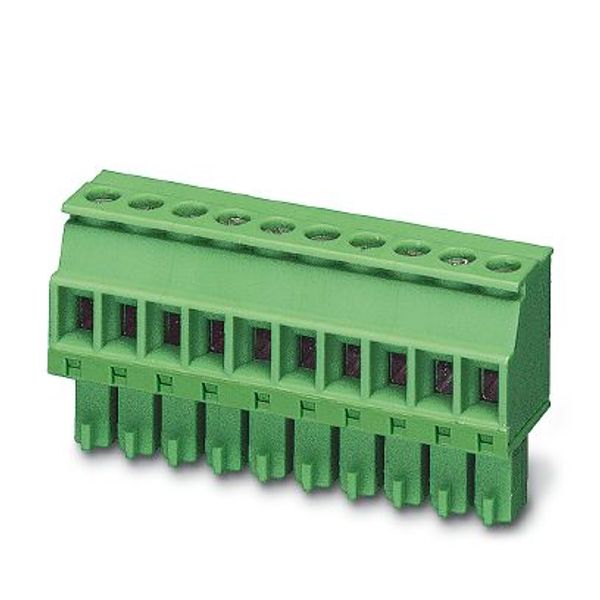

MCVR 1,5/10-ST-3,81 AU - PCB connector
Order only
Minimal order quantity: 50
Price (excl. VAT):
4,82 €
per pcs
Subtotal: 241,00 €
MOQ: 50
EAN: 4017918380816
MPN: 1893216
Box: 1
Estimate delivery time to our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | MCVR 1,5/10-ST-3,81 AU - PCB connector |
| Brand | Phoenix Contact |
| Categories |
Cable Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Type of connection | Other |
| Rated voltage | 160 V |
| Number of poles | 10 |
| Contact type | Bus |
| Operating temperature | -40-100 °C |
| Rated surge voltage | 2.5 kV |
| Angle contact/conductor connection | Other |
| Rated current In | 8 A |
Packing details
| Packing level 1 | 4017918380816 |
Other Technical data
| Colour housing | Green |
| Housing material | Other |
| Coating housing | Other |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electric connection | Screw connection |
| Material of contact surface | Gold |
| Over voltage category | III |
| Pollution degree | 2 |
| Connectable cable type | Other |
| Modular spacing connections | 3.81 mm |
| Number of plug-in contact rows | 1 |
| Modular spacing contacts | 3.81 mm |
| Connectable conductor cross section solid-core | 0.14-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-0.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-1.5 mm² |
| With protective conductor | No |
| Material insulation body | Other |
| Material contact | Copper |
Description
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Gold, type of contact: Female connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MCVR 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 °, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard
