Parall. connect. Cu/gal Sn f. diff. cond. Rd 5-12.5mm / 16-95mm² w. sp

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

104,50 €

This price is valid until 31.12.25

EAN: 4013364269125

MPN: 306105

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Parall. connect. Cu/gal Sn f. diff. cond. Rd 5-12.5mm / 16-95mm² w. sp
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8536 9095 00
Surface protection	Galvanic tinned
Type of fastening screws	Hexagon screw
Material	Copper
Lightning current load-bearing capacity (10/350 µs)	25 kA
Diameter round conductor 1	5-12.5 mm

Packing details

Packing level 1

4013364269125, 4013364269125

Other Technical data

Type of connector	Parallel connector
Diameter round conductor 2	5-12.5 mm

Downloads

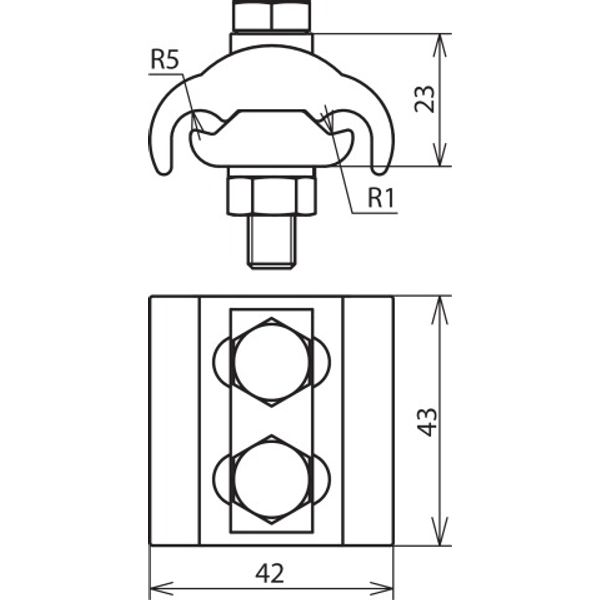

Product data sheet Dimensioned drawing

Description

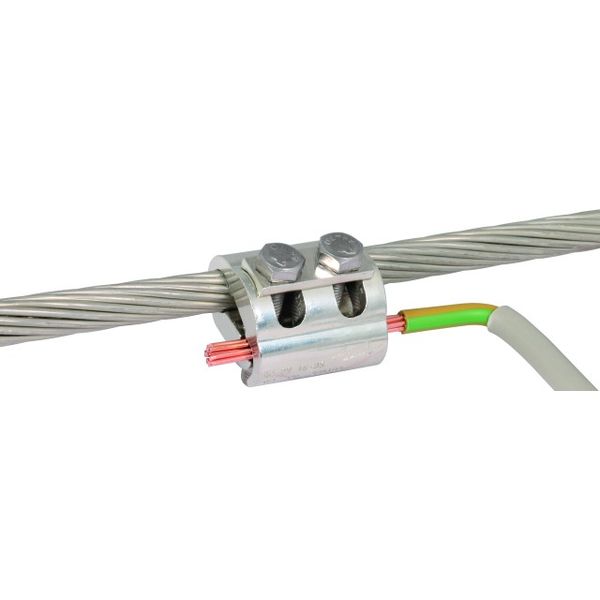

Parallel connector for establishing an equipotential bonding system in explosive atmosphere. Non-sparking and tested for use in explosion-hazardous areas Ex zone 1 and 2 (gases of explosion group IIC) as well as Ex zone 21 and 22 (dusts). Small type, for different cable diameters, with spring washer and two screws, secured against self-loosening in accordance with DIN EN 62305-3 Supplement 2.
