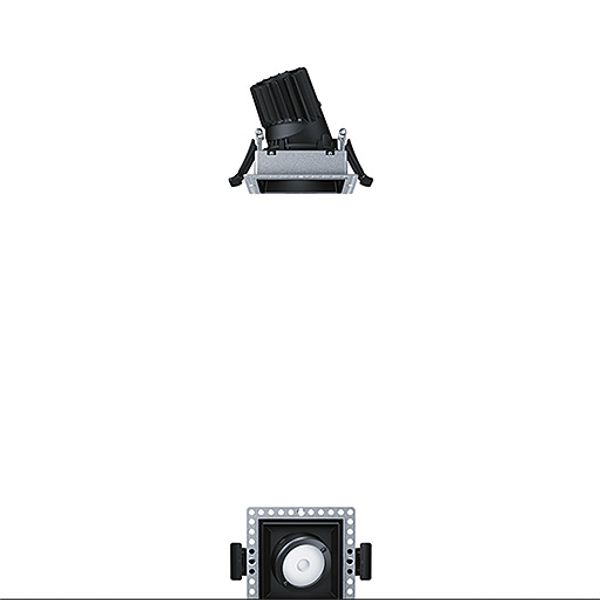

PANOS INF Q68V 10W 940 LDO SP-BK TL - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
448,00 €
EAN: 4053167251590
MPN: 60816933
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | PANOS INF Q68V 10W 940 LDO SP-BK TL - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1140 00 |
| Width | 82 mm |
| Colour rendering index CRI | 90-100 |
| Length | 82 mm |
| Height/depth | 87 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Narrow beam 11 - 20° |
| Colour temperature | 4000 K |
| Max. system power | 9.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 625 lm |
| Luminaire efficacy | 65 lm/W |
Packing details
| Packing level 1 | 4053167251590, 4053167251590 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 68 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 68 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-1.5 mm² |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 6.3 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 6 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 105 mm |
| Power factor | 0.84 |
Downloads
Description
LED ceiling-recessed luminaire (adjustable), without trim, with innovative lens technology; with lens system for high-quality flexible accent lighting; tool-free, intuitive setting of light cone with switched-on luminaire, light cone rotates through 355° and can be tilted up to 27°; with optimised uniform light distribution with high intensity and soft transitions, with reduced stray light from the light cone; lamp(s): 10 W LED940, SPOT distribution characteristic; reflector: smooth, coated black (18 °); Colour rendering Ra > 90, colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 625 lm, Luminaire efficacy: 64 lm/W; service life: 50000h at 85% luminous flux; includes separate control unit, Slave luminaire for DALI control (DALI only); high quality optic unit of LED PCB, glass lens and film integrated in optimised thermal management of die-cast aluminium; secondary optic made of high-quality, UV-resistant polycarbonate; degree of protection IP23: (when installed in closed ceilings; luminaire unit can be fitted quickly without tools using EASY-CLICK catch; luminaire wired with halogen-free leads; power connection: 5-pole connector terminal; mains voltage: 220-240 V / 0/50/60 Hz ; installation: tool-free quick installation using antislip spring clips in ceilings of thickness 1-25mm; ceiling cutout: 68x68 mm, recessed depth: 105mm; weight: 0.3 kg;
Note: Please order seating surround (planar surround) separately for installing the luminaire flush with the ceiling (see Accessories)
