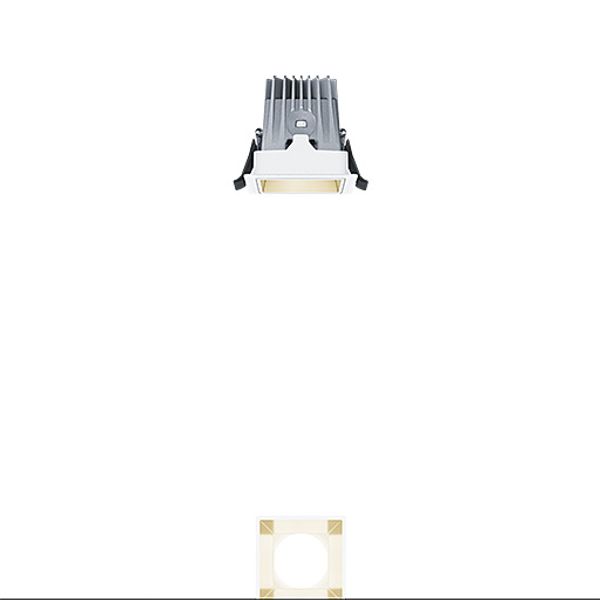

PANOS INF Q68 10W 927 LDO FL-GD TL - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
319,52 €
EAN: 4053167291480
MPN: 60817486
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | PANOS INF Q68 10W 927 LDO FL-GD TL - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 83 mm |
| Colour rendering index CRI | 90-100 |
| Length | 83 mm |
| Height/depth | 76 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 2700 K |
| Max. system power | 10 W |
| Rated luminous flux according to IEC 62722-2-1 | 585 lm |
| Luminaire efficacy | 59 lm/W |
Packing details
| Packing level 1 | 4053167291480, 4053167291480 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 68 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 68 mm |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-1.5 mm² |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 5.9 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 10 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker B16 | 130 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 100 mm |
Downloads
Description

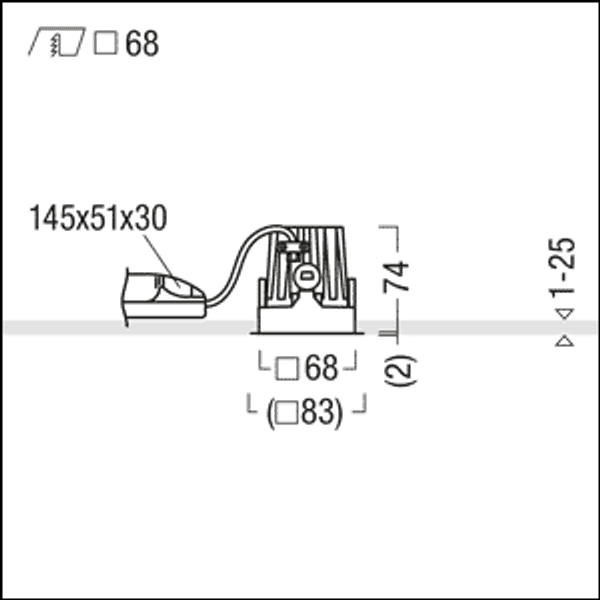

LED ceiling-recessed luminaire without cover frame "trimless", "Stable White"; maximum light quality thanks to specially designed reflector, lamp(s): 10 W LED927, FLOOD distribution characteristic; reflector: smooth, gold colour coated, matt (29 °); Colour rendering Ra > 90, colour temperature 2700 K (warm white); Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 585 lm, Luminaire efficacy: 58 lm/W; service life: 50000h at 85% luminous flux; includes control unit Slave luminaire for DALI control (DALI only); modular, high quality optical unit consisting of reflector and LED light chamber integrated in optimised thermal management of die-cast aluminium; reflector made of high-quality, UV-resistant polycarbonate; luminaire unit can be fitted quickly without tools using EASY-CLICK catch; IP20; luminaire wired with halogen-free leads; power connection: 5-pole connector terminal; mains voltage: 220-240 V / 0/50/60 Hz, for use with 220V DC central battery ; tool-free quick installation using antislip spring clips in ceilings of thickness 1-25mm; ceiling cutout: 68x68 mm, recessed depth: 100mm; weight: 0.32 kg;
Note: Please order seating surround (planar frame) separately for installing the luminaire flush with the ceiling (see Accessories)
