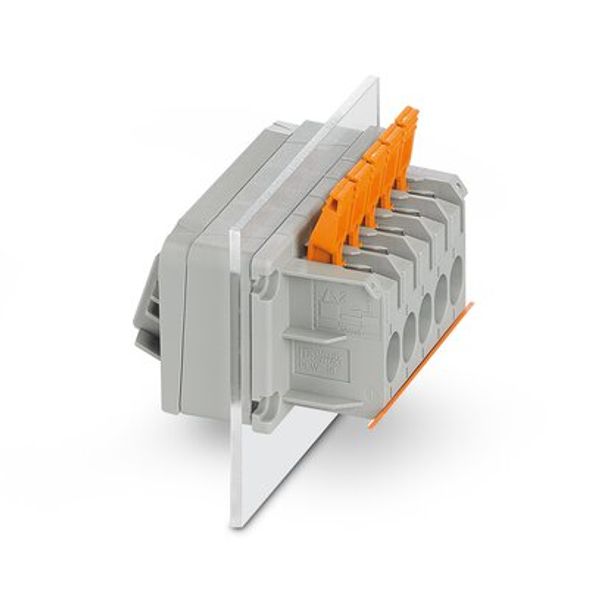

PLW 16-6/ 3-10 - Panel feed-through terminal block

Name: PLW 16-6/ 3-10 - Panel feed-through terminal block
Brand: Phoenix Contact
Availability: PreOrder

Order only Minimal order quantity: 15

Price (excl. VAT):

Price by request

This price is valid while stock lasts

Subtotal: 0,00 € MOQ: 15

EAN: 4046356788199

MPN: 1821067

Box: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	PLW 16-6/ 3-10 - Panel feed-through terminal block
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin*	SK
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	1000 V
Number of poles	3
Number of clamp positions per pole	0
Connectable conductor cross section solid-core	2.5-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	2.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	2.5-25 mm²
Connection position	Sideways
Rated current In	0 A

Packing details

Packing level 1

4046356788199, 4046356788199

Other Technical data

Colour	Grey
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	54.4 mm
Dimension vertical to mounting plate inner side	0 mm
Dimension parallel to mounting plate inner side	0 mm
Dimension vertical to mounting plate outer side	0 mm
Dimension parallel to mounting plate outer side	0 mm
Material insulation body	Other

Description

Panel feed-through terminal block, connection method: Push-lock connection, Push-in spring connection, number of positions: 3, load current: 41 A, cross section: 2.5 mm² - 10 mm², connection direction of the conductor to plug-in direction: 0 °, width: 54.4 mm, color: gray
