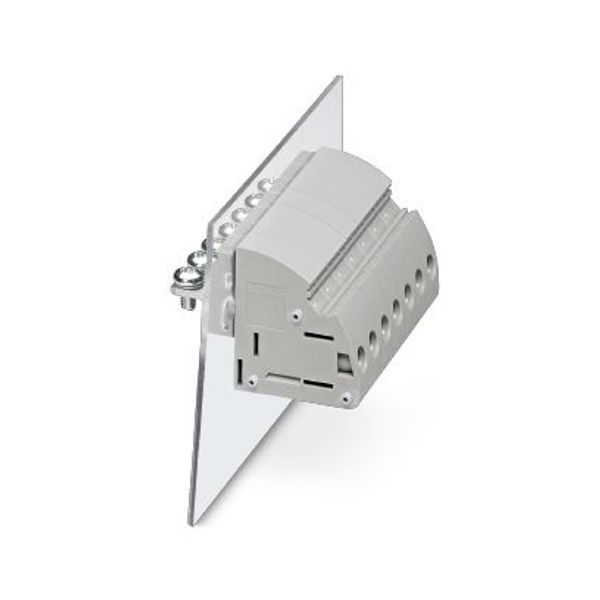

UWV 16-POT/S - Panel feed-through terminal block

Name: UWV 16-POT/S - Panel feed-through terminal block
Brand: Phoenix Contact
Price: 3.020 EUR
Availability: PreOrder

Order only Minimal order quantity: 50

Price (excl. VAT):

3,02 € per pcs

This price is valid until 24.12.25

Subtotal: 151,00 € MOQ: 50

EAN: 4046356344791

MPN: 3073555

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	UWV 16-POT/S - Panel feed-through terminal block
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	800 V
Number of poles	1
Number of clamp positions per pole	0
Type of electrical connection 1	Screw connection
Connectable conductor cross section solid-core	6-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve	6-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	6-16 mm²
Connectable conductor cross section multi-wired	2.5-10 mm²
Connection position	Sideways
Rated current In	0 A

Packing details

Packing level 1

4046356344791, 4046356344791

Other Technical data

Colour	Grey
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	12.1 mm
Dimension vertical to mounting plate inner side	0 mm
Dimension parallel to mounting plate inner side	0 mm
Dimension vertical to mounting plate outer side	0 mm
Dimension parallel to mounting plate outer side	0 mm
Material insulation body	Other

Description

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Cable lug connection, number of positions: 1, load current: 76 A, cross section: 6 mm² - 25 mm², connection direction of the conductor to plug-in direction: -90 °, width: 12.1 mm, color: gray
