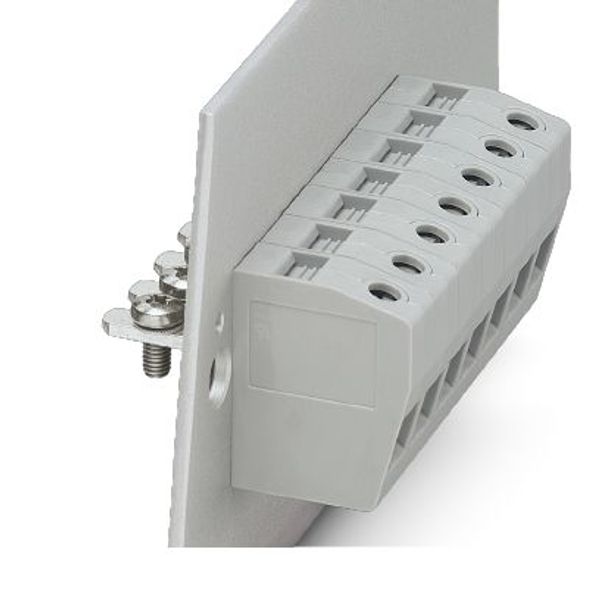

HDFK 16-VP - Panel feed-through terminal block

Order only Minimal order quantity: 50

Price (excl. VAT):

3,62 € per pcs

This price is valid until 24.12.25

Subtotal: 181,00 € MOQ: 50

EAN: 4017918153465

MPN: 0709796

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	HDFK 16-VP - Panel feed-through terminal block
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin*	GR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Rated voltage	500 V
Number of poles	1
Number of clamp positions per pole	0
Type of electrical connection 1	Screw connection
Connectable conductor cross section solid-core	0.5-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5-16 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5-16 mm²
Connectable conductor cross section multi-wired	0.5-6 mm²
Connection position	Sideways
Rated current In	0 A

Packing details

Packing level 1

4017918153465, 4017918153465

Other Technical data

Colour	Grey
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	12.1 mm
Dimension vertical to mounting plate inner side	0 mm
Dimension parallel to mounting plate inner side	0 mm
Dimension vertical to mounting plate outer side	0 mm
Dimension parallel to mounting plate outer side	0 mm
Material insulation body	Other

Description

Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Cable lug connection, number of positions: 1, load current: 76 A, cross section: 0.5 mm² - 25 mm², connection direction of the conductor to plug-in direction: 0 °, width: 12.1 mm, color: gray
