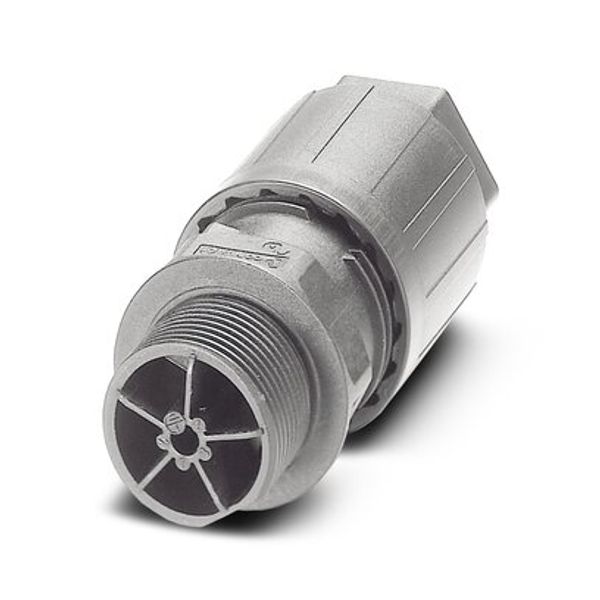

QPD W 4PE2,5 9-16 M25 FC GY - Panel feed-through

Name: QPD W 4PE2,5 9-16 M25 FC GY - Panel feed-through
Brand: Phoenix Contact
Price: 7.740 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

7,74 € per pcs

This price is valid until 24.12.25

EAN: 4046356662062

MPN: 1582575

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	QPD W 4PE2,5 9-16 M25 FC GY - Panel feed-through
Brand	Phoenix Contact
Categories	Device Connectors
Country of origin	PL
Harmonized System Code	8536 6990 00
Rated current	20 A
Rated voltage	690 V
Number of poles	5
Housing material	Other
Surface treatment contacts	Silver-plated
Degree of protection (IP)	IP66
Colour coding/contact insert	Grey

Packing details

Packing level 1

4046356662062, 4046356662062

Other Technical data

Width	34.6 mm
Halogen free	No
Height	34.6 mm
Colour housing	Grey
Length	71.8 mm
Pollution degree	0
Mechanical coding	Yes
Rated surge voltage	6 kV
Continuity resistor	0.003 mOhm
Connection size thread	M25
Number of connections per pole	1
Fire load	0 kWh
Colour of the separate adapter piece	Other
Max. continuous temperature resistance contact part	0 °C
Max. continuous temperature resistance strain relief	0 °C
Length soldering pin	0 mm
Wall thickness housing	0 mm

Description

Panel feed-through, QUICKON connection, number of positions: 4+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, gray, with QUICKON nut, external cable diameter: 9 mm ... 16 mm, assembly thread: M25, Spade connection (For slip-on sleeves according to DIN 46247-2)
