SACC-DSIV-FS-4CON-L180SCOTHRSH - Device connector, rear mounting
In stock: No
Vendor stock: No
Minimal order quantity: 60
Price (excl. VAT):
5,53 €
per pcs
Subtotal: 331,80 €
MOQ: 60
EAN: 4046356476720
MPN: 1440009
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-DSIV-FS-4CON-L180SCOTHRSH - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 60 V |
| Contact type | Bus |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP67 |
| Diameter connector | 0 mm |
| Rated current In | 4 A |
| Number of power contacts | 0 |
| Number of control contacts | 5 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356476720, 4046356476720 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | HB |
| Material of contact surface | Gold |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Min. number of insertion cycles | 0 |
| Material thread ring | Other |
Description

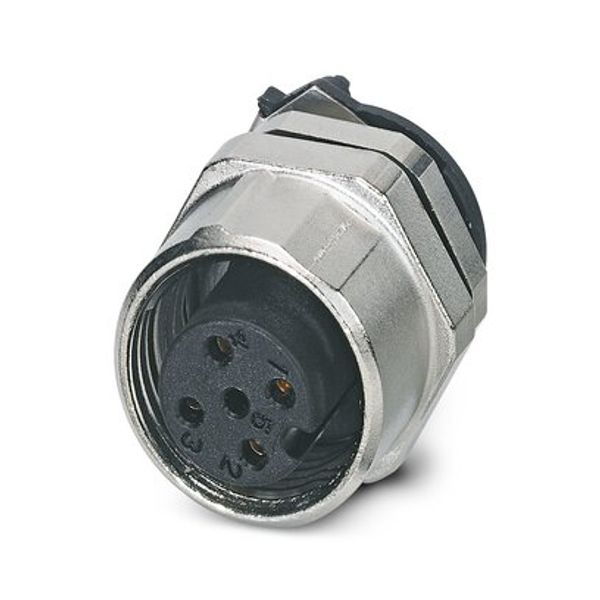

Sensor/actuator flush-type socket, 5-pos., M12 SPEEDCON, B-coded, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection
