SACC-DSI-FSB-5CON-PG9/ 0,5 SCO - Device connector, rear mounting

Name: SACC-DSI-FSB-5CON-PG9/ 0,5 SCO - Device connector, rear mounting
Brand: Phoenix Contact
Price: 8.450 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

8,45 € per pcs

This price is valid until 24.12.25

EAN: 4046356101561

MPN: 1543676

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACC-DSI-FSB-5CON-PG9/ 0,5 SCO - Device connector, rear mounting
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8544 4290 00
Rated voltage	60 V
Contact type	Bus
Ambient temperature	85 °C
Degree of protection (IP), mounted	IP65/IP67
Diameter connector	0 mm
Rated current In	4 A
Number of power contacts	0
Number of control contacts	5
Number of data contacts	0

Packing details

Packing level 1

4046356101561, 4046356101561

Other Technical data

Locking mechanism	Other
Screened	No
Housing material	Other
With status indication	No
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Gold
Thread size M	0
Over voltage category	II
Pollution degree	3
Type of housing	Straight
With protective conductor	No
Min. number of insertion cycles	100
Material thread ring	Other

Description

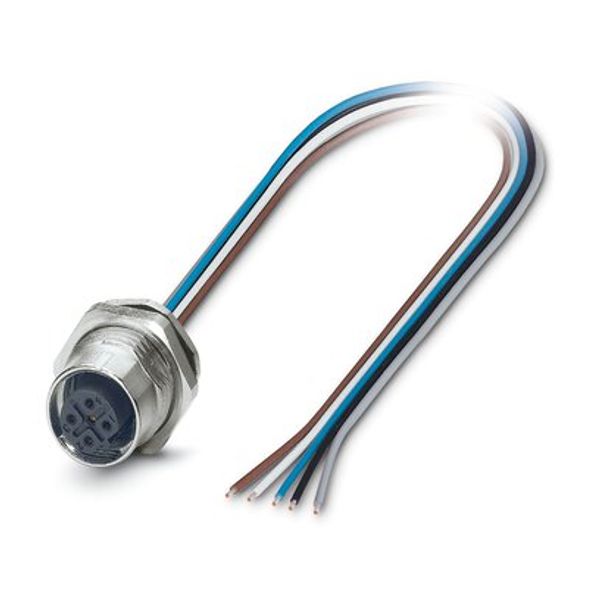

Device connector, rear mounting, Universal, 5-position, Flush-type female connector, straight, M12-SPEEDCON, coding: B , on free cable end, Rear mounting, Pg9, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) item no.: 1239967
