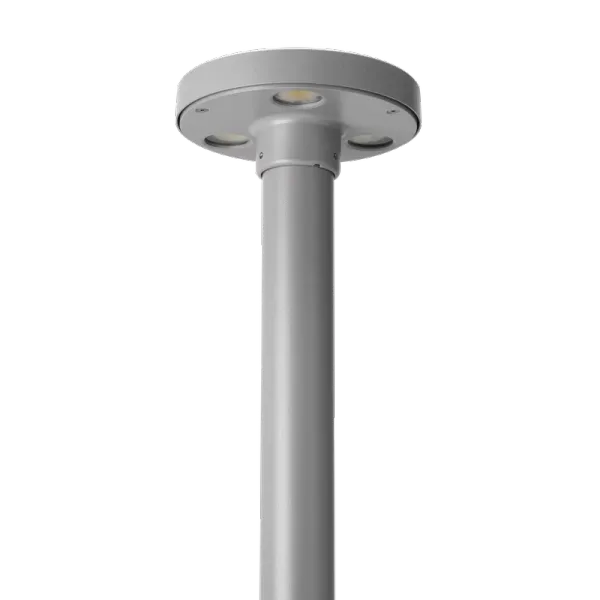

PADO 600 3LED 20W 4000K GREY
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
185,73 €
EAN: 8018367629446
MPN: 304086
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | PADO 600 3LED 20W 4000K GREY |
| Brand | Performance in Lighting |
| Categories |
Street and park luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 80-89 |

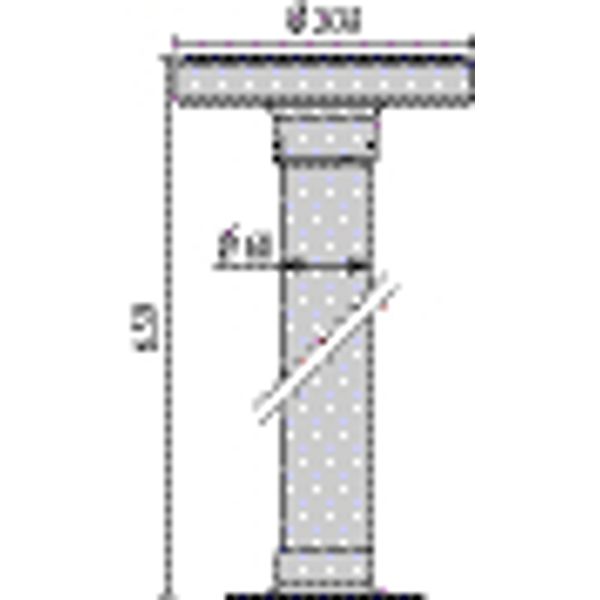

| Height/depth | 659 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP65 |

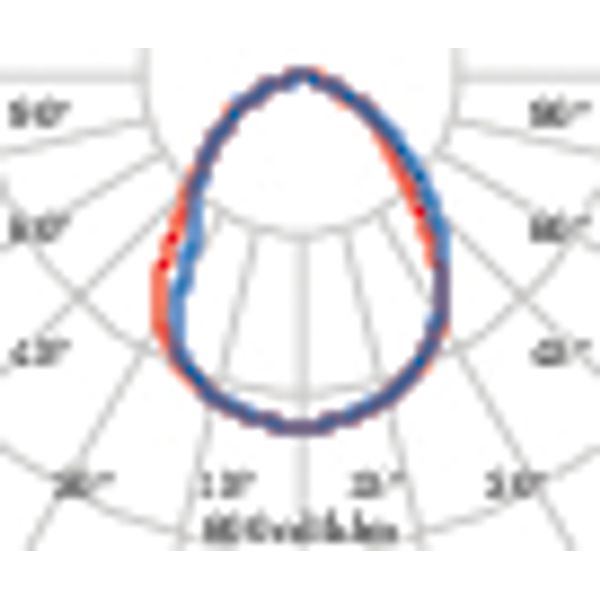

| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 20 W |
| Luminaire efficacy | 58 lm/W |
Packing details
| Packing level 1 | 8018367629446, 8018367629446 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| With base plate | Yes |
| Connection type | Screwed terminal |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 20 W |
| Type of control gear | LED operating device current-controlled |
| Diameter | 208 mm |
| With light sensor | No |
| Luminous intensity | 58 cd |
| Housing material | Aluminium |
| Type of luminaire | Bollard luminaire |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 500 |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Light distributor | Diffuser lens/optic/panel |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 86.8 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 75.2 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Housing material quality | Other |
| Power factor | 0.9 |
Downloads
Description
Mastarmatuur voor algemene verlichting buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak. Afscherming van inwendig gesatineerd glas. Siliconenpakking. Externe elektrische aansluiting met een waterdichte stekker-stopcontact QUICK, compleet met kabel. Schroeven van roestvrij staal. Mast van gelakt geëxtrudeerd aluminium h 600 mm met flens voor de versie PADO 600. Het coatingproces is uitgevoerd met 13 verschillende passages met polyestherpoeder, zeer UV en weerbestendig.
