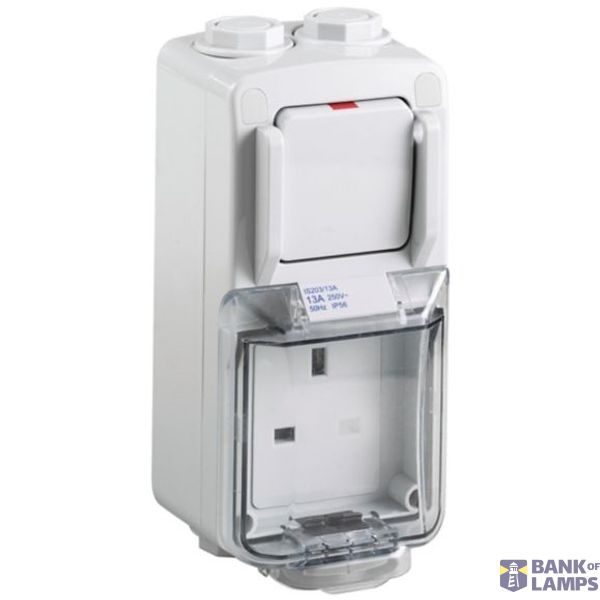

P771 Eaton Moeller series Weatherproof range (PREMERA PROOF) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | P771 Eaton Moeller series Weatherproof range (PREMERA PROOF) - Wiring devices |
| Brand | EATON |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 13 A |
| Nominal voltage | 240 V |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | British Standard |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| Surface protection | Untreated |
| With signal lamp | No |
| Number of phases | 2 |
| With enhanced contact protection | Yes |
| Frequency | 50 Hz |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Duroplast |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 0 mA |
| Type of fastening | Mounting with screw |
| Imprint/indication | Other |
| RAL-number (similar) | 0 |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | Yes |
| Suitable for degree of protection (IP) | IP66 |
| Device width | 82 mm |
| Device height | 103 mm |
| Device depth | 63 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Number of active pins (round) | 0 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | No |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Metallic colour | No |
| Anti-bacterial treatment | No |
| For heavy conditions according to VDE | No |
Packing details
| Packing level 1 | 5010826132743 |
Description
Socket 13A, Premera Proof, Other Accessories, Current rating Amperage 13 A, Rated operating voltage Volts 250V~, No. of gang 1 Gang, Single Pole, Types conform to (Standards) GSO BS 1363-2, EN 60669-1, Front plate colour Gray, Thermoplastic, Grey, Thermoplastic, Base colour Grey, Thermoplastic, Front plate / module dimensions 82 x 195 x 62.5 mm, Front plate depth 21 mm, Weight (kgs) 0.384 kgs, Silver, Nickel, Brass, Zinc Coated Steel with clear Passivation, Terminal capacity (L.N & E) Socket Terminals =, 4 x 2.5mm², or 2 x 4.0mm², Switch Terminals =, 2 x 2.5mm², or 1 x 4.0mm² mm², Combination Head, IP66
