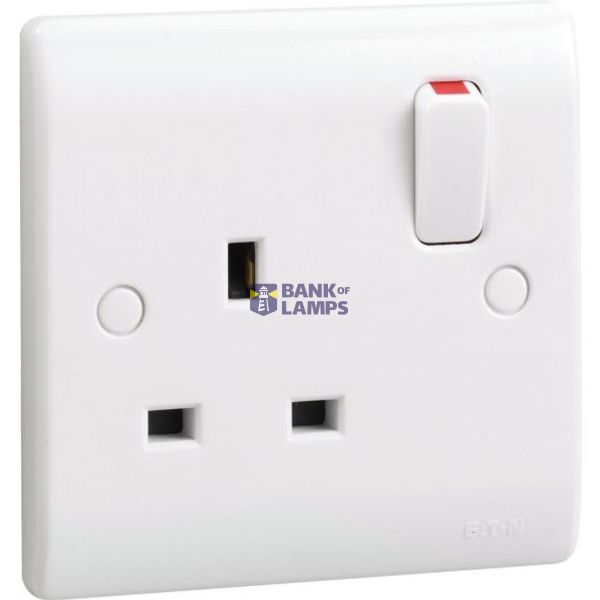

P611 Eaton Moeller series White moulded range (PREMERA) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | P611 Eaton Moeller series White moulded range (PREMERA) - Wiring devices |
| Brand | EATON |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000125 |
| Nominal current | 13 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | British Standard |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Screwed terminal |
| Surface protection | Untreated |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| Frequency | 50 Hz |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | Yes |
| Material | Plastic |
| Rated fault current | 1000 mA |
| Type of fastening | Mounting with screw |
| Imprint/indication | Other |
| RAL-number (similar) | 9016 |
| Transparent | No |
| Surface finishing | Matt |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 40 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Number of active pins (round) | 0 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | No |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Metallic colour | No |
| Anti-bacterial treatment | Yes |
| For heavy conditions according to VDE | No |
Packing details
| Packing level 1 | 5010826125103 |
| Packing level 2 | 9010238240766 |
Description
Switched socket according to BS 1363: Part 2. Terminals capable of accepting up to 3 x 4qmm or 2 x 6qmm conductors.
