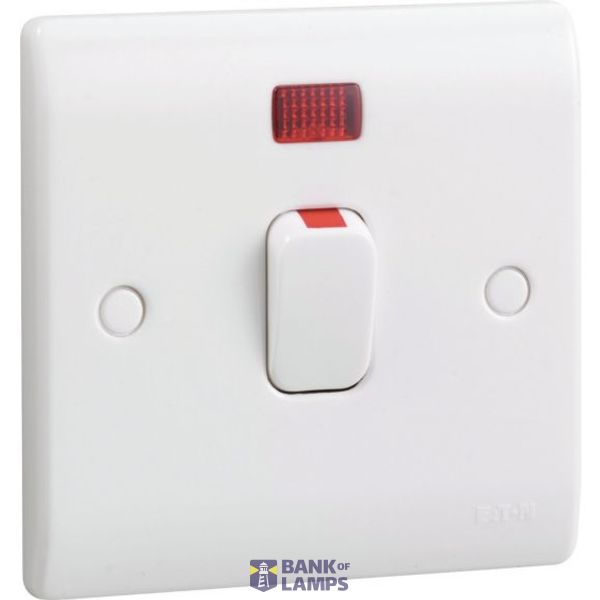

P401N Eaton Moeller series White moulded range (PREMERA) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | P401N Eaton Moeller series White moulded range (PREMERA) - Wiring devices |
| Brand | EATON |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC001590 |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with full cover plate |
| Method of operation | Rocker/button |
| Rated current | 20 A |
| Type of fastening | Screw mounting |
| Wiring system | 2-pole switch |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 5010826125646 |
| Packing level 2 | 9010238240933 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Surface protection | Untreated |
| Built-in depth | 35 mm |
| Feedback-signal contact | Yes |
| Material quality | Thermoplastic |
| Type of lighting | Other |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 9016 |
| Switching current for fluorescent lamps | 20 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Matt |
| Device width | 86 mm |
| Device height | 86 mm |
| Device depth | 40 mm |
| Label space/information surface | No |
| Function lighting | Other |
| Number of modules (module system) | 0 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 25 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Description
Power switch with optional cable outlet according to BSEN 60669-1. Supply terminals accept 3 x 2.5qmm conductors. Load terminals accept 2 x 2.5qmm conductors. Accessories: P212 adaptor plate for use with bottom entry cable outlet.
