Wireless level meter Probare

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Wireless level meter Probare
Brand	ELTAKO
Country of origin*	AT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8526 9200 00
ETIM	EC001083
Monitor	None
Measuring range satellite	Analogue
Measuring range terrestrial	Analogue
Measuring range CATV	Analogue
Measurement indication	Other

Packing details

Packing level 1

4010312317068, 4010312317068

Other Technical data

Measured value memory	No
Produces DiSEqC-commands	No
With printer	No

Downloads

Deep link product page

Description

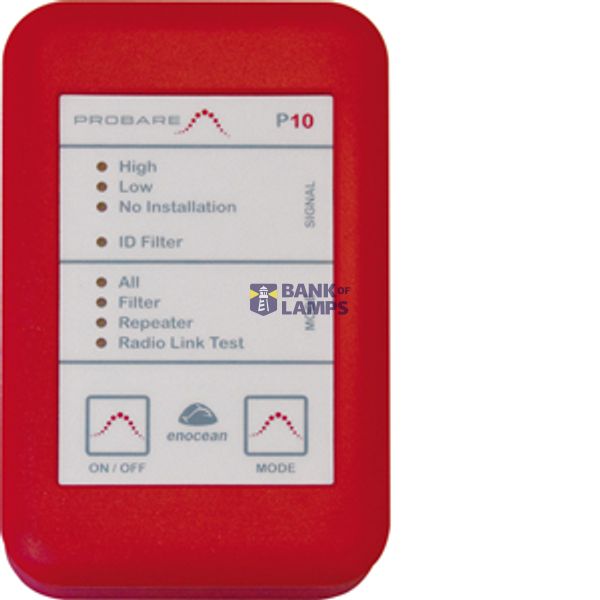

The wireless field test tool Probare P10 is a portable field tester which shows the signal quality of the received EnOcean 868MHz telegrams. Additionally it helps to determine the best place for EnOcean transmitters, receivers or repeaters, it can also help to look if any signals are sent or not. 2 AA/LR06 batteries are additionally necessary. Switch on and off by pressing the ON/OFF button for 1.5 seconds. The signal quality is shown by LEDs. With the MODE button you can switch between the different functions. All shows the signal quality of all received EnOcean telegrams. Filter shows the signal quality of one unique transmitter. Repeater activates the repeater function (level 1) by this way you can determine the best position for a repeater. Radio Link Test allows the wireless coverage testing in combination with the adequate receiver by sending telegrams cyclically.
