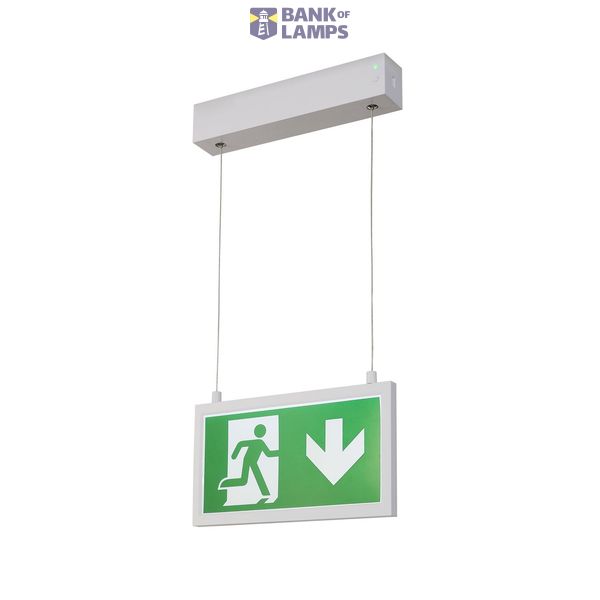

P-LIGHT Emergency Exit sign small pendant, white
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | P-LIGHT Emergency Exit sign small pendant, white |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 6920 00 |
| ETIM | EC001957 |

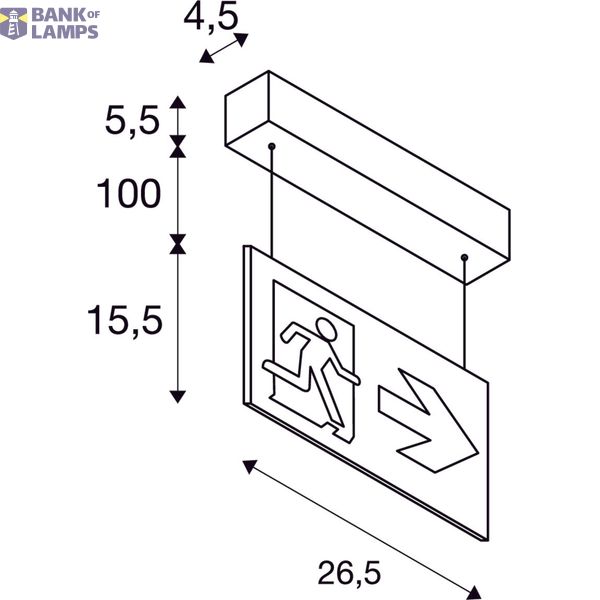

| Width | 265 mm |
| Length | 45 mm |
| Height/depth | 210 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 6000 K |
| Max. system power | 3.5 W |
| Rated luminous flux according to IEC 62722-2-1 | 32 lm |
Packing details
| Packing level 1 | 4024163162913 |
Other Technical data
| Mounting method | Pendant |
| Protection class | II |
| Outer diameter | 0 mm |
| Function | Escape route lighting/signage |
| Lamp holder | None |
| Conductor cross section | 0 mm² |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Central (central battery) |
| Type of control gear | Not required |
| With remote control | No |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for labelling type | Insert sheet/plate |
| Type of indicator | Single/double-sided |
| Number of poles | 0 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Built-in length | 0 mm |
| Material cover | Plastic matt/satinized |
| Battery quality | NiMH |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Automatic self test |
| Recognition distance | 24 m |
| With pictogram | Yes |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Luminous flux in standby mode | 32 lm |
| Light distributor | Other |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 3 h |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Exchangeable control gear | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0 |
Description
The P-LIGHT 27 PL emergency lighting is suitable as a pendant. The safety lights are fitted with a built-in Ni-MH battery with an automatic self-test. The detection range is 24 m. The emergency operating time of the luminaires is three hours. The luminaires can be operated permanently switched on / stand-by operation. The luminaire is connected directly to the 230V mains supply. Other variants of the P-LIGHT series are available. The luminaire is supplied with three signs with different arrow directions (right / left / down). As an option, other signs are available.
