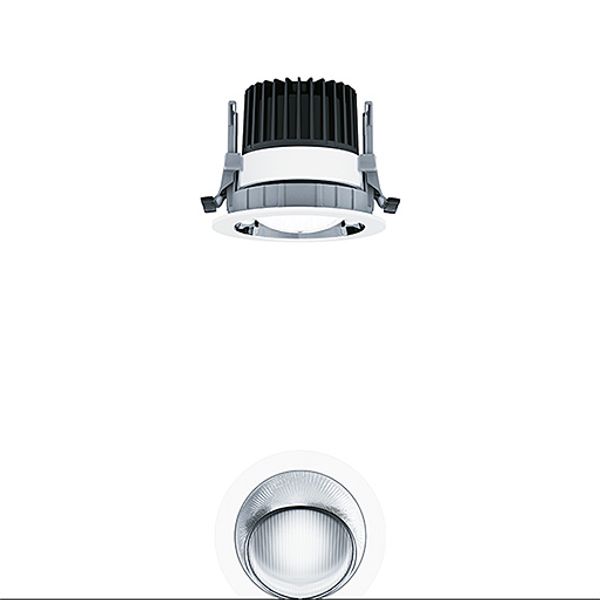

P-INF R100WW 1300-930 LDO AL WH - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
431,50 €
EAN: 4053167334255
MPN: 60818005
Package: 1
Pallet: 105
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | P-INF R100WW 1300-930 LDO AL WH - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 90-100 |

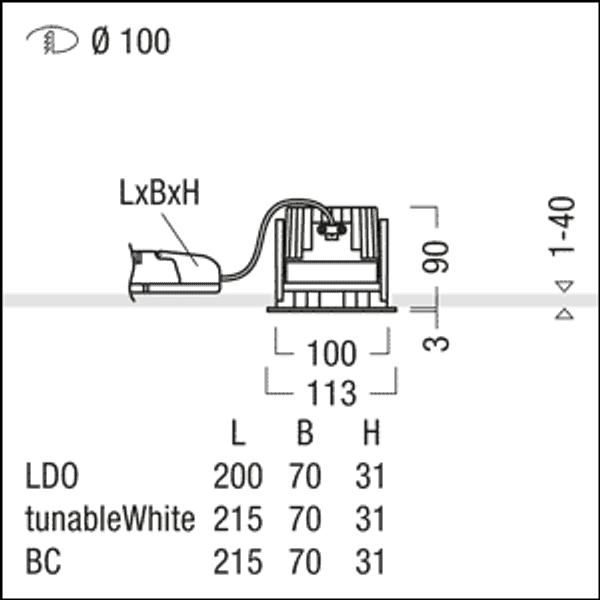

| Height/depth | 93 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 3000 K |
| Max. system power | 15 W |
| Rated luminous flux according to IEC 62722-2-1 | 1366 lm |
| Luminaire efficacy | 92 lm/W |
Packing details
| Packing level 1 | 4053167334255, 4053167334255 |
| Packing level 2 | 4053167334255 |
Other Technical data
| Protection class | II |
| Outer diameter | 113 mm |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-2.5 mm² |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 14 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 29 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 100 mm |
| Power factor | 0.96 |
Downloads
Description
LED ceiling-recessed luminaire (wallwasher), "Stable White"; asymmetric light distribution with maximum luminaire efficiency and optimum photometric properties; lamp(s): LED1300-930; Colour rendering Ra > 90 (R9> 50), colour temperature 3000 K (warm white); Chromaticity tolerance (initial MacAdam): 2; Luminaire input power: 15 W; Luminaire luminous flux: 1366 lm, Luminaire efficacy: 91 lm/W; service life: 100000h at 90% luminous flux or 50000h at 95% luminous flux; includes controllable ballast Slave luminaire for DALI control (DALI only); modular, high quality optical unit consisting of reflector and LED light chamber integrated in optimised thermal management of die-cast aluminium; asymmetric smooth reflector in highly reflective aluminized finish, iridescence-free with additional oval-outline lens; reflector/trim made of high-quality, UV-resistant polycarbonate; cover ring white; mounting ring made of Glass fibre-reinforced polycarbonate (PC), grey; luminaire unit can be fitted quickly without tools thanks to simplified twist-and-lock mechanism; IP44_IP20; luminaire wired with halogen-free leads; electrical connection: 5-pole terminal, loop-in/loop-out possible; mains voltage: 220-240 V / 0/50/60 Hz ; installation: tool-free quick installation using antislip spring clips in ceilings of thickness 1-40mm; ceiling cutout: 100mm, recess depth: 100mm (for ceiling thicknesses 1-15mm); weight: 0.59 kg
