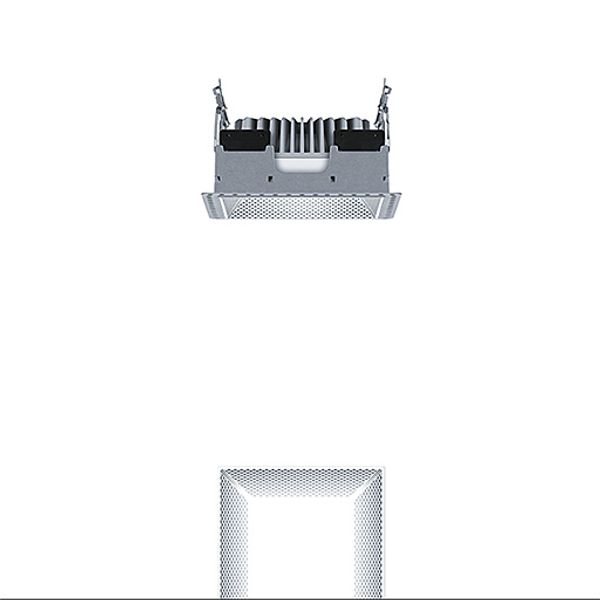

P-INF Q140L 1000-940 LDO FAL TL - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167337003
MPN: 60818190
Package: 1
Pallet: 112
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | P-INF Q140L 1000-940 LDO FAL TL - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 158 mm |
| Colour rendering index CRI | 90-100 |
| Length | 158 mm |
| Height/depth | 103 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 9 W |
| Rated luminous flux according to IEC 62722-2-1 | 1060 lm |
| Luminaire efficacy | 118 lm/W |
Packing details
| Packing level 1 | 4053167337003, 4053167337003 |
| Packing level 2 | 4053167337003 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 140 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 140 mm |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-2.5 mm² |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 11 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 21 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 100 mm |
| Power factor | 0.96 |
Downloads
Description
LED ceiling-recessed luminaire without trim; designed for use where space is limited in ceiling: recess depth only 100mm; "stableWhite" LED luminaire, with symmetric wide-beam light distribution with maximum luminaire efficiency and optimum photometric properties; lamp(s): LED1000-940; Colour rendering Ra > 90 (R9> 50), colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 2; Luminaire input power: 9 W; Luminaire luminous flux: 1060 lm, Luminaire efficacy: 118 lm/W; service life: 100000h at 90% luminous flux or 50000h at 95% luminous flux; includes separate control unit Slave luminaire for DALI control (DALI only); high-quality reflector unit fixed to modular LED lighting chamber by catch mechanism; high-efficiency LED lighting chamber is integrated in optimised, passive thermal management system made of diecast aluminium; reflector: , faceted, aluminized, highly reflective, iridescence-free; reflector made of high quality, UV-resistant polycarbonate; luminaire unit can be fitted quickly without tools using EASY-CLICK catch; IP20; luminaire wired with halogen-free leads; power connection: 5-pole connector terminal, loop-in/loop-out possible; mains voltage: 220-240 V / 0/50/60 Hz, for use with 220V DC central battery ; installation: tool-free quick installation using spring clips in ceilings of thickness 1-25mm; ceiling cutout: 140x140 mm, recessed depth: 100mm; weight: 0.77 kg;
Note: Please order seating surround (planar surround) separately for installing the luminaire flush with the ceiling (see Accessories); to achieve EN12464 compliance in office applications (UGR<19, aluminized reflector type), please order an additional anti-glare surround
