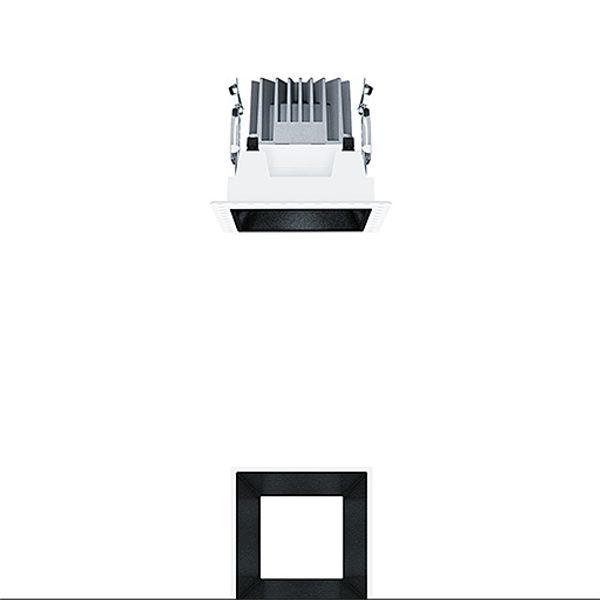

P-INF Q100L 500-940 LDO BK TL - LED ceiling-recessed luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4053167332961
MPN: 60817919
Package: 1
Pallet: 105
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | P-INF Q100L 500-940 LDO BK TL - LED ceiling-recessed luminaire |
| Brand | Zumtobel |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 117 mm |
| Colour rendering index CRI | 90-100 |
| Length | 117 mm |
| Height/depth | 102 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 9 W |
| Rated luminous flux according to IEC 62722-2-1 | 600 lm |
| Luminaire efficacy | 67 lm/W |
Packing details
| Packing level 1 | 4053167332961, 4053167332961 |
| Packing level 2 | 4053167332961 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 100 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Built-in length | 100 mm |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-2.5 mm² |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 6 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 17 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 60 |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 106 mm |
| Power factor | 0.85 |
Downloads
Description
LED ceiling-recessed luminaire without trim, "Stable White"; shielding angle 60°; lamp(s): LED500-940; Colour rendering Ra > 90 (R9> 50), colour temperature 4000 K (neutral white); Chromaticity tolerance (initial MacAdam): 2; Luminaire input power: 9 W; Luminaire luminous flux: 600 lm, Luminaire efficacy: 67 lm/W; service life: 100000h at 90% luminous flux or 50000h at 95% luminous flux; includes ballast unit Slave luminaire for DALI control (DALI only); modular, high quality optical unit consisting of reflector and LED light chamber integrated in optimised thermal management of die-cast aluminium; smooth reflector in coated black; reflector made of high-quality, UV-resistant polycarbonate; luminaire unit can be fitted quickly without tools using EASY-CLICK catch; IP44_IP20; luminaire wired with halogen-free leads; power connection: 5-pole connector terminal, loop-in/loop-out possible; mains voltage: 220-240 V / 0/50/60 Hz, for use with 220V DC central battery ; installation: tool-free quick installation using spring clips in ceilings of thickness 1-25mm; ceiling cutout: 100x100 mm, recessed depth: 106mm; weight: 0.56 kg;
Note: UGR<19 for office applications compliant with EN12464 (depending on luminaire type);
Note: Please order seating surround (planar surround) separately for installing the luminaire flush with the ceiling (see Accessories)
