P-INF/EVO / DIAMO R100 CASTING SURROUND - Concrete casting surr. 100mm ceil cutout

Name: P-INF/EVO / DIAMO R100 CASTING SURROUND - Concrete casting surr. 100mm ceil cutout
Brand: Zumtobel
Price: 118.590 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

118,59 €

This price is valid until 24.12.25

EAN: 4053167314455

MPN: 60800818

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	P-INF/EVO / DIAMO R100 CASTING SURROUND - Concrete casting surr. 100mm ceil cutout
Brand	Zumtobel
Categories	Luminaire accessories Luminaires
Country of origin	DE
Harmonized System Code	9405 9900 00
Width	200 mm
Height	155 mm
Type of accessory/spare part	Installation housing
Length	500 mm

Packing details

Packing level 1

4053167314455, 4053167314455

Other Technical data

Colour	Other
Material	Steel

Downloads

Declaration RoHS Sales brochure

Description

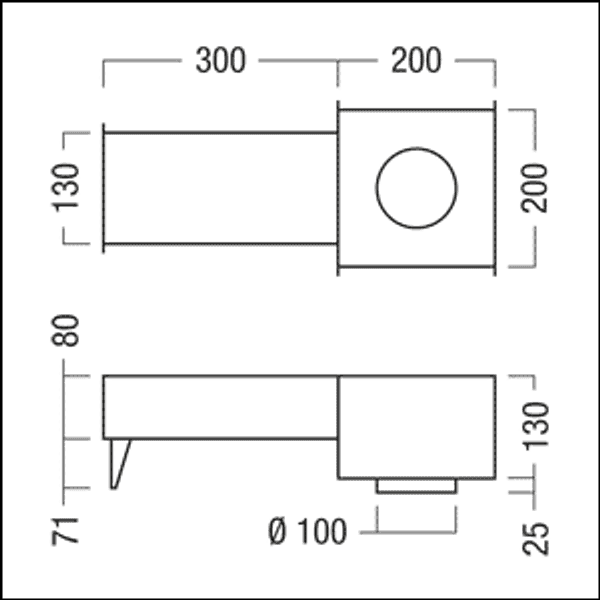

Concrete casting surr. 100mm ceil cutout; for installing PANOS infinity / evolution R100 recessed luminaires and DIAMO Deep Source installation rings (single) including ballast unit in concrete ceilings; compact housing made of sheet steel; housing ring and stabilising feet of stainless steel, can therefore be used in exposed concrete ceilings (observe maximum granulation); housing can be connected to the iron reinforcement and shuttering using fixing clips; reliable fixing to on-site lagging via supplementary screw-fastening of housing; dimensions: 500 x 200 x 155 mm; weight: 2.2 kg; Note: can also be used in combination with PANOS infinity / evolution emergency light version (E3D); for fixing into concrete for filigree ceilings / panelled ceilings, please order accessory (clip set: 60800824) separately. Note: Must not be used with PANOS infinity R100L/H/WW LED927-65/19W!
