P-INF/EVO / DIAMO Q100 CASTING SURROUND - concrete casting surr. for DA 100x100 mm

Name: P-INF/EVO / DIAMO Q100 CASTING SURROUND - concrete casting surr. for DA 100x100 mm
Brand: Zumtobel
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 4053167314462

MPN: 60800819

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	P-INF/EVO / DIAMO Q100 CASTING SURROUND - concrete casting surr. for DA 100x100 mm
Brand	Zumtobel
Categories	Luminaire accessories Luminaires
Country of origin	DE
Harmonized System Code	9405 9900 00
Width	200 mm
Height	155 mm
Type of accessory/spare part	Installation housing
Length	500 mm

Packing details

Packing level 1

4053167314462, 4053167314462

Other Technical data

Colour	Other
Material	Steel

Downloads

Declaration RoHS Sales brochure

Description

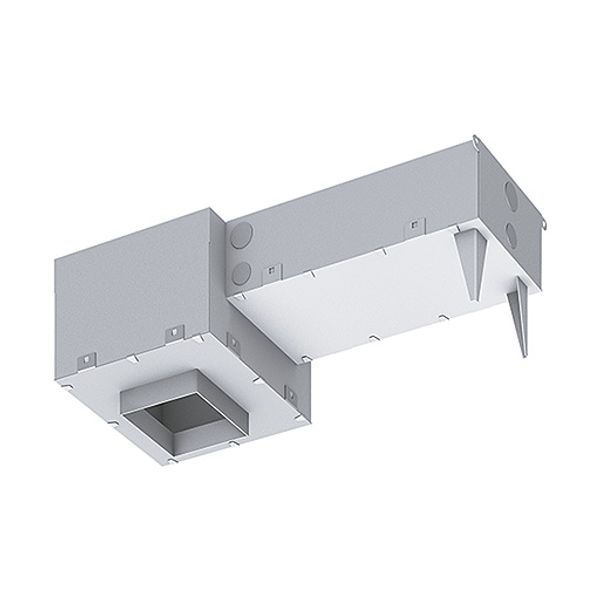

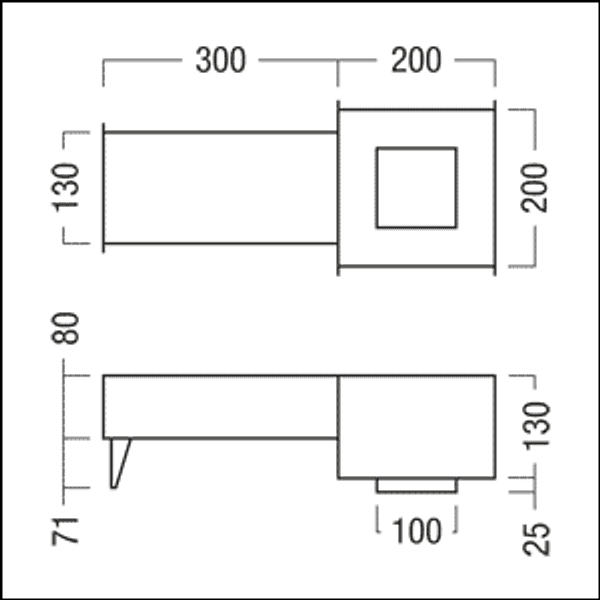

Concrete casting surr. for DA 100x100 mm; for installing PANOS infinity / evolution Q100 recessed luminaires and DIAMO Gimbal/Deep Source installation frame (single) including ballast unit in concrete ceilings; compact housing made of sheet steel; housing ring and stabilising feet of stainless steel, can therefore be used in exposed concrete ceilings (observe maximum granulation); housing can be connected to the iron reinforcement and shuttering using fixing clips; reliable fixing to on-site lagging via supplementary screw-fastening of housing; dimensions: 500 x 200 x 155 mm; weight: 2.2 kg; Note: can also be used in combination with PANOS infinity / evolution emergency light version (E3D); for fixing into concrete for filigree ceilings / panelled ceilings, please order accessory (clip set: 60800824) separately. Note: Must not be used with PANOS infinity Q100L/H/WW LED927-65/19W!
