P.E. MET Ex IsoD25 C11.5/18
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
15,56 €
EAN: 3596031784820
MPN: 32402025
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | P.E. MET Ex IsoD25 C11.5/18 |
| Brand | Socomec |
| Categories |
Standard Cable Glands
|
| Country of origin | FR |
| Harmonized System Code | 7318 1900 00 |
| Model | Straight |
| Thread length | 0 mm |
| Material quality | Brass |
| Thread type | Metric |
| Material | Metal |
| Hexagon angular dimension | 0 mm |
| Suitable for cable diameter | 11.5-18 mm |
| Degree of protection (IP) | IP55 |
| Nominal thread size inch/gas pipe thread | Other |
| Nominal thread size metric/PG | 0 |
Packing details
| Packing level 1 | 3596031784820 |
Other Technical data
| Colour | Grey |
| Halogen free | No |
| Shock resistant | Yes |
| Surface protection | Untreated |
| Bend radius protection/trumpet flare | No |
| With strain relief | Yes |
| Screened | No |
| EMC-version | No |
| Glass-fibre reinforced | No |
| Type of sealing | Sealing ring |
| Operating temperature | -20-50 °C |
| Pitch thread | 0 mm |
| Explosion-tested version | Yes |
| Flat cable coupling | No |
| Multi seal area | No |
| With locknut | No |
| Separable screw gland | Yes |
| For Ex-zone gas | None |
| For Ex-Zone dust | 21, 22 |
| For armoured cable | No |
| Snapping in opening | No |
| Wrench width | 0 mm |
Downloads
Description

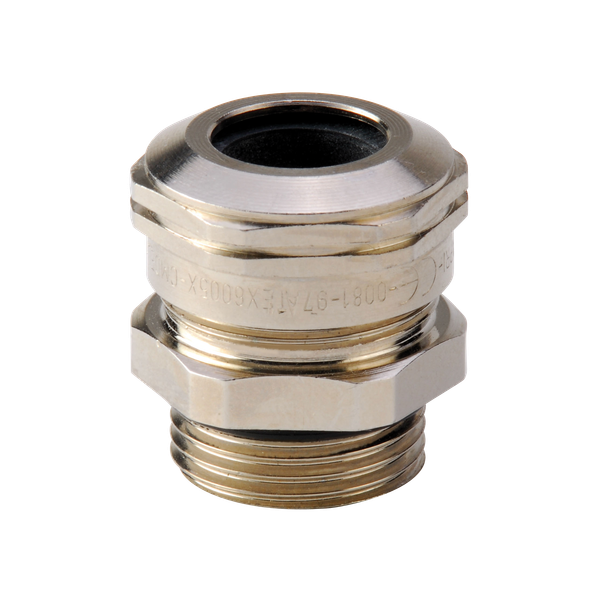

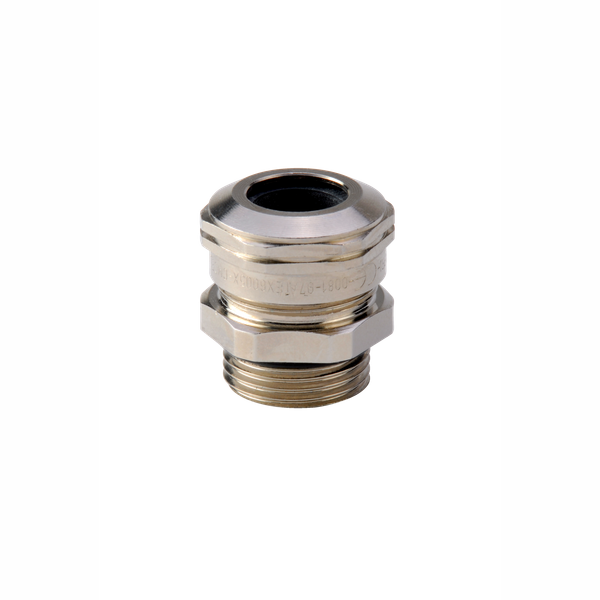

BRASS CABLE GLAND ATEX DIAMETER 25
